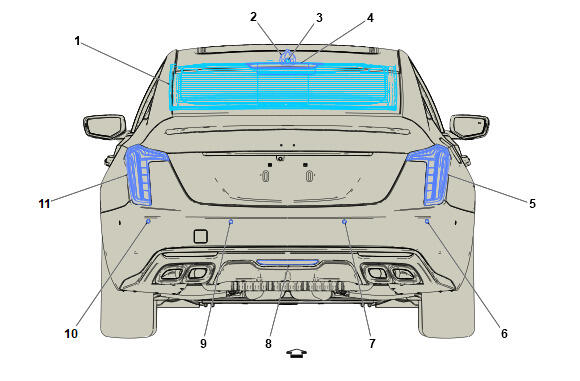

Rear of Vehicle Components
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
| Items |
| 1. E18 Rear Window Defogger Grid E18 Rear Window Defogger Grid X1
, or E18 Rear Window Defogger Grid X2 |
| 2. T4P High Frequency Antenna T4P High Frequency Antenna X1 (U2K)
, or T4P High Frequency Antenna X2 (-UE1)
, or T4P High Frequency Antenna X2 (UE1+V87)
, or T4P High Frequency Antenna X2 (UE1-V87)
, or T4P High Frequency Antenna X3 (DRZ) |
| 3. B352 Video Display Inside Rearview Mirror Camera |
| 4. E6 High Mount Stop Lamp E6 High Mount Stop Lamp |
| 5. E42R Rear Body Structure Stop Lamp - Right E42R Rear Body Structure Stop Lamp - Right (-T79)
, or E42R Rear Body Structure Stop Lamp - Right (T79) |
| 6. B306H Parking Assist Alarm Sensor - Rear Right Outer B306H Parking Assist Alarm Sensor - Rear Right Outer (UD7/UKL)
, or B306H Parking Assist Alarm Sensor - Rear Right Outer (UKG) |
| 7. B306G Parking Assist Alarm Sensor - Rear Right Middle B306G Parking Assist Alarm Sensor - Rear Right Middle (UD7/UKL)
, or B306G Parking Assist Alarm Sensor - Rear Right Middle (UKG) |
| 8. E5 Rear Fascia Auxiliary Signal Lamp - Backup (without T79) E5 Rear Fascia Auxiliary Signal Lamp - Backup (-T79) |
| 9. B306F Parking Assist Alarm Sensor - Rear Left Middle B306F Parking Assist Alarm Sensor - Rear Left Middle (UD7/UKL)
, or B306F Parking Assist Alarm Sensor - Rear Left Middle (UKG) |
| 10. B306E Parking Assist Alarm Sensor - Rear Left Outer B306E Parking Assist Alarm Sensor - Rear Left Outer (UD7/UKL)
, or B306E Parking Assist Alarm Sensor - Rear Left Outer (UKG) |
| 11. E42L Rear Body Structure Stop Lamp - Left E42L Rear Body Structure Stop Lamp - Left (-T79)
, or E42L Rear Body Structure Stop Lamp - Left (T79) |
