Left Side or Rear Compartment Components (2 of 2)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

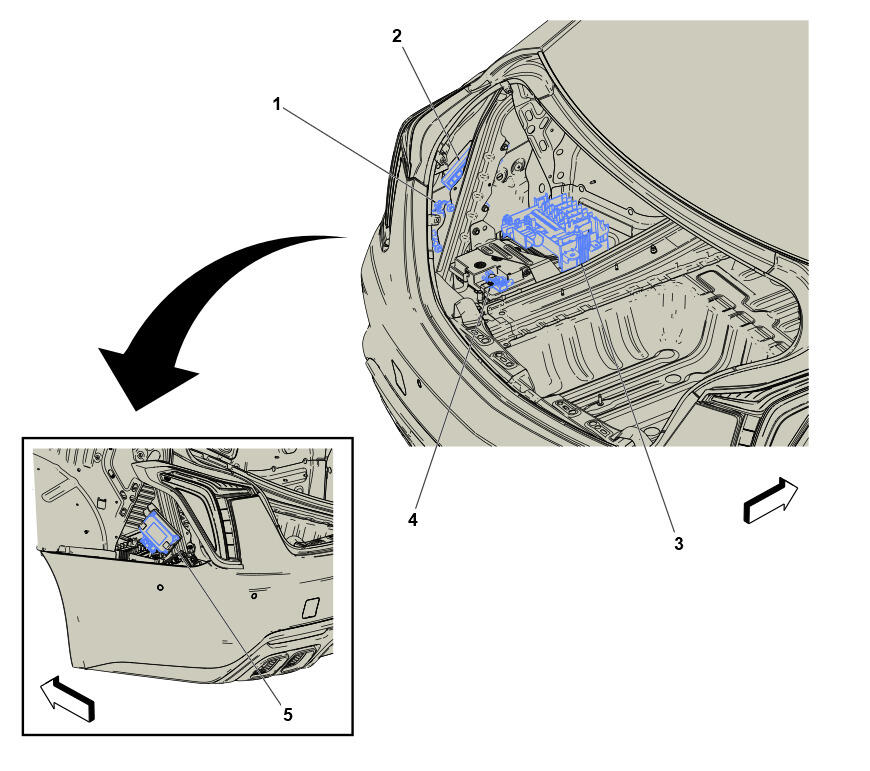

GM5326544Courtesy of GENERAL MOTORS COMPANY
Items
1. K164 Differential Control Module K164 Differential Control Module X1 (G96) , or K164 Differential Control Module X2 (G96)
2. T19 Multifunction Power Supply Converter T19 Multifunction Power Supply Converter
3. X50D Battery Distribution Fuse Block X50D Battery Distribution Fuse Block X1 , or X50D Battery Distribution Fuse Block X2 , or X50D Battery Distribution Fuse Block X4 , or X50D Battery Distribution Fuse Block X5 , or X50D Battery Distribution Fuse Block X6 , or X50D Battery Distribution Fuse Block X7 , or X50D Battery Distribution Fuse Block X9
4. B110 Battery Monitor Module B110 Battery Monitor Module X1 , or B110 Battery Monitor Module X2
5. T19 Multifunction Power Supply Converter T19 Multifunction Power Supply Converter
