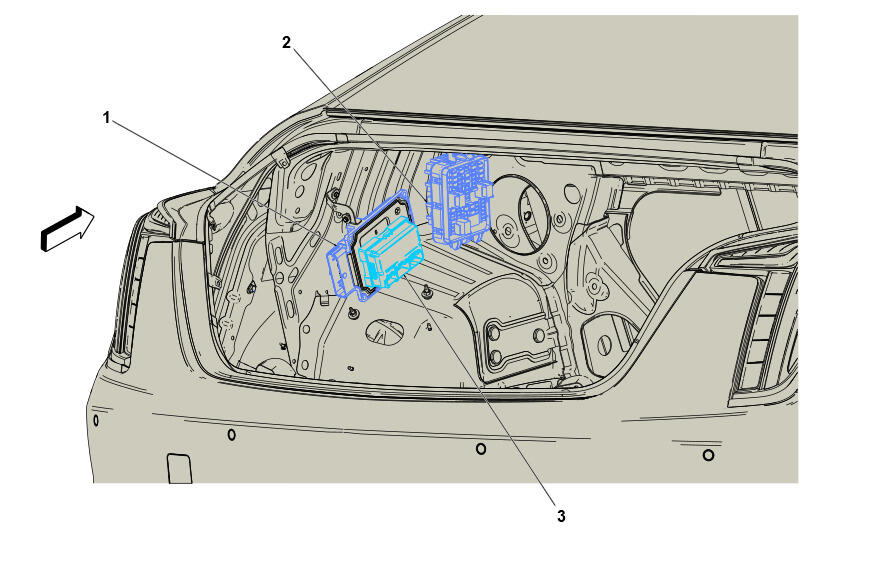

Left Side or Rear Compartment Components (1 of 2)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. K19 Suspension Control Module K19 Suspension Control Module (F55+(UKL/LGY/LSY)) , or K19 Suspension Control Module (F55+LT4) |
| 2. X53A Body Wiring Harness Junction Block - Rear X53A Body Wiring Harness Junction Block - Rear X1 , or X53A Body Wiring Harness Junction Block - Rear X2 |
| 3. K69 Transfer Case Control Module (F46) K69 Transfer Case Control Module X1 (F46) , or K69 Transfer Case Control Module X3 (F46) |
