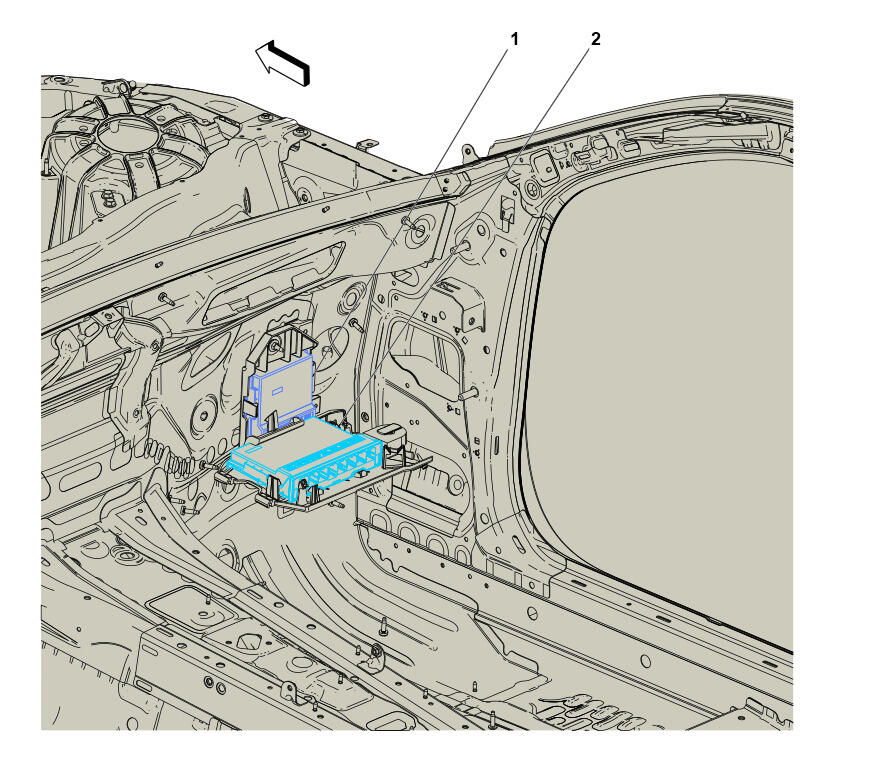

Under the Right Side of the Instrument Panel Components (1 of 2)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. K219 Lighting Control Module K219 Lighting Control Module X1 , or K219 Lighting Control Module X2 , or K219 Lighting Control Module X3 , or K219 Lighting Control Module X4 , or K219 Lighting Control Module X5 |
| 2. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 , or K9 Body Control Module X8 |
