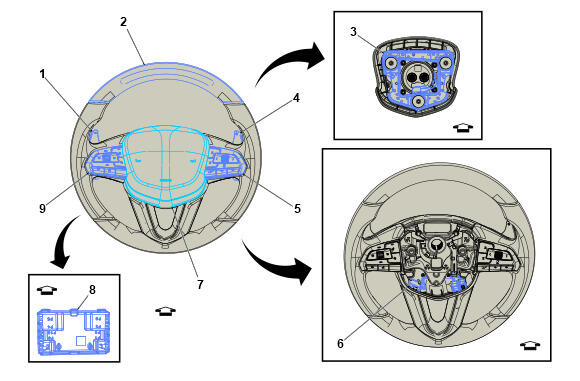

Steering Wheel Components

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. S2L Automatic Transmission Manual Shift Auxiliary Position Switch - Left S2L Automatic Transmission Manual Shift Auxiliary Position Switch - Left
2. P51 Steering Wheel LED Display (UKL) P51 Steering Wheel LED Display (UKL)
3. S33 Steering Wheel Horn Contact S33 Steering Wheel Horn Contact
4. S2R Automatic Transmission Manual Shift Auxiliary Position Switch - Right S2R Automatic Transmission Manual Shift Auxiliary Position Switch - Right
5. S70R Radio Control Switch - Steering Wheel S70R Radio Control Switch - Steering Wheel
6. K32 Heated Steering Wheel Module (KI3) K32 Heated Steering Wheel Module X1 (KI3) , or K32 Heated Steering Wheel Module X2 (KI3)
7. F107 Steering Wheel Airbag F107 Steering Wheel Airbag X1 , or F107 Steering Wheel Airbag X2
8. K180S Driver Monitoring System Module - Steering Wheel (UKL) K180S Driver Monitoring System Module - Steering Wheel X10 (UKL) , or K180S Driver Monitoring System Module - Steering Wheel X6 (UKL) , or K180S Driver Monitoring System Module - Steering Wheel X7 (UKL) , or K180S Driver Monitoring System Module - Steering Wheel X9 (UKL)
9. S70L Cruise Control Switch S70L Cruise Control Switch
