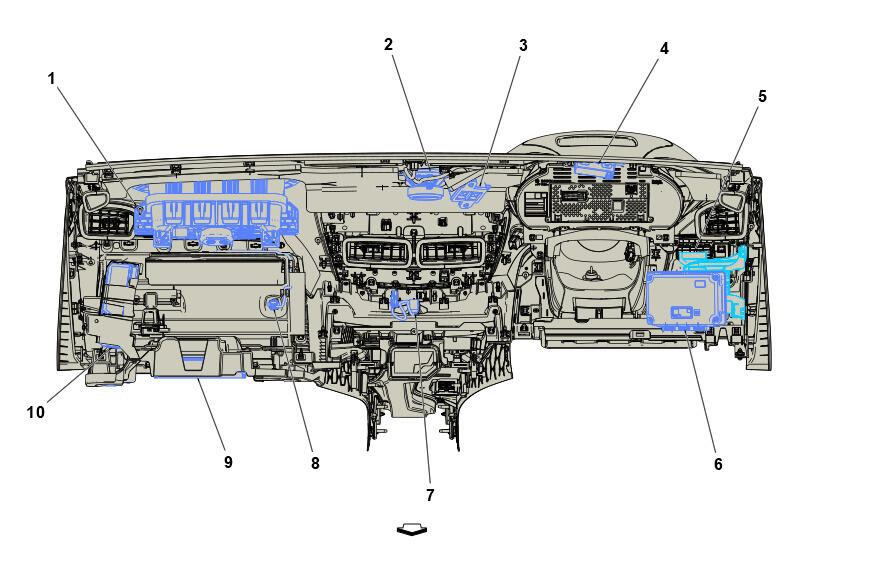

Instrument Panel Rear Components (1 of 2)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. F101 Instrument Panel Airbag F101 Instrument Panel Airbag X1 , or F101 Instrument Panel Airbag X2
2. P19B Radio Front Center Speaker P19B Radio Front Center Speaker (UQG) , or P19B Radio Front Center Speaker (UQP) , or P19B Radio Front Center Speaker (UQS)
3. V1 Passenger Compartment Air Filter Module (KEM) V1 Passenger Compartment Air Filter Module (KEM)
4. P43 Forward Collision Alert Display (without UV6) P43 Forward Collision Alert Display (-UV6)
5. X51A Instrument Panel Wiring Harness Junction Block X51A Instrument Panel Wiring Harness Junction Block
6. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2 , or K56 Serial Data Gateway Module X3
7. E88 Front Floor Console Bin Lamp E88 Front Floor Console Bin Lamp
8. E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp
9. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 , or K9 Body Control Module X8
10. A11 Radio A11 Radio X1 , or A11 Radio X10 (-U2Q) , or A11 Radio X10 (U2Q) , or A11 Radio X11 (PPW) , or A11 Radio X2 , or A11 Radio X3 , or A11 Radio X4 , or A11 Radio X5 (UV2) , or A11 Radio X6 (UQP) , or A11 Radio X6 (UQS) , or A11 Radio X7 , or A11 Radio X8 (-UE1) , or A11 Radio X9 (U2K)
