Floor Console Components
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

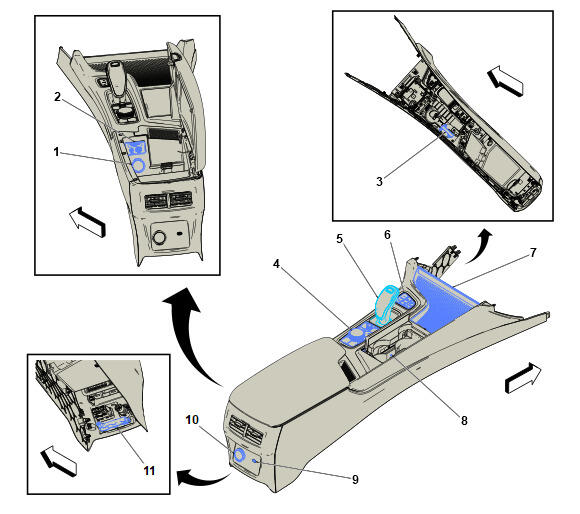

| Items |
|---|
| 1. X80H Accessory Power Receptacle - Floor Console Front X80H Accessory Power Receptacle - Floor Console Front |
| 2. X23 Multimedia Receptacle X23 Multimedia Receptacle X1 , or X23 Multimedia Receptacle X2 |
| 3. T10J Low Frequency Instrument Panel Antenna T10J Low Frequency Instrument Panel Antenna |
| 4. S165 Infotainment Control Switch S165 Infotainment Control Switch |
| 5. K212 Gear Shift Control Module (without MJK) K212 Gear Shift Control Module (-MJK) |
| 6. S86 Vehicle Stability Control System Switch S86 Vehicle Stability Control System Switch |
| 7. T22 Wireless Accessory Charging Module T22 Wireless Accessory Charging Module |
| 8. E28 Front Floor Console Compartment Lamp E28 Front Floor Console Compartment Lamp |
| 9. X92C Single Charge Only 2nd Row Receptacle - Floor Console Rear X92C Single Charge Only 2nd Row Receptacle - Floor Console Rear |
| 10. X80L Front Floor Console Accessory Power Rear Receptacle X80L Front Floor Console Accessory Power Rear Receptacle |
| 11. T10K Low Frequency Console Antenna - Rear T10K Low Frequency Console Antenna - Rear |
