Floor Console Components (MJK)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

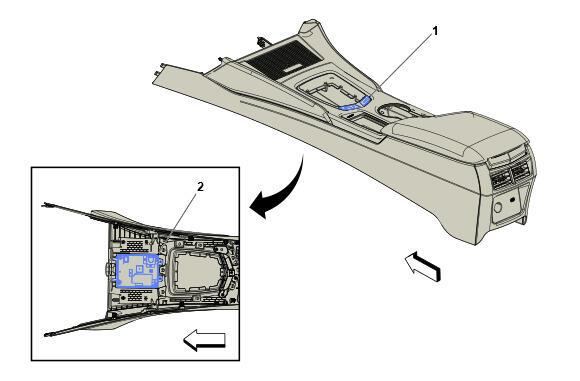

GM5638750Courtesy of GENERAL MOTORS COMPANY
Items
1. S86 Vehicle Stability Control System Switch S86 Vehicle Stability Control System Switch
2. T22 Wireless Accessory Charging Module T22 Wireless Accessory Charging Module
