G307 and G401

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

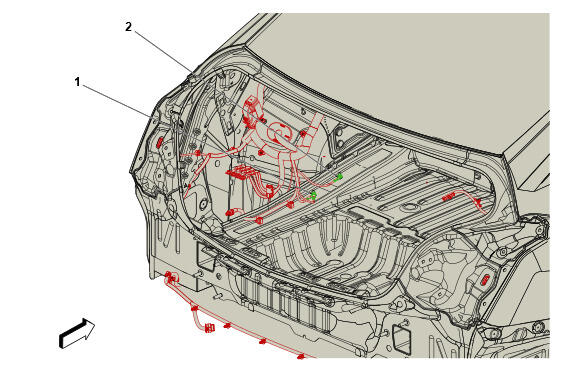

GM5865203Courtesy of GENERAL MOTORS COMPANY
Items
1. G401 Body Wiring Harness
2. G307 Body Wiring Harness
