G305 and G306

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

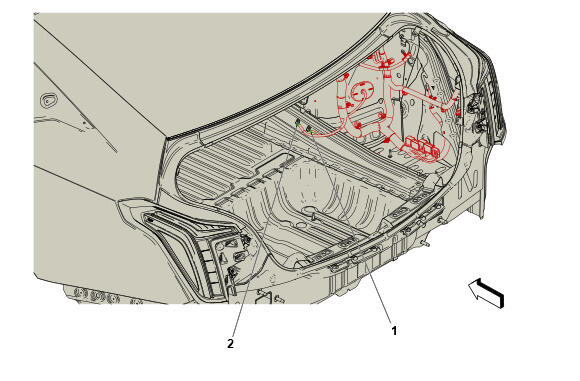

GM5865205Courtesy of GENERAL MOTORS COMPANY
Items
1. G306 Body Wiring Harness
2. G305 Body Wiring Harness
