G107 (LT4)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

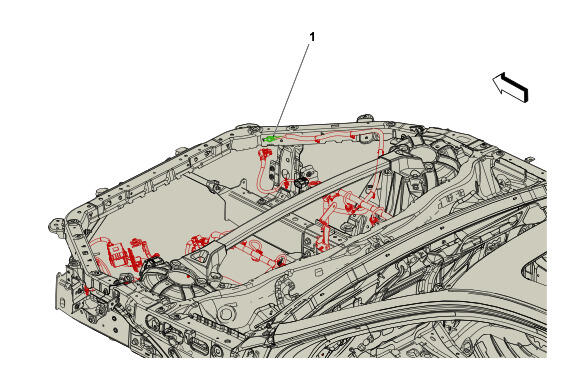

GM5638807Courtesy of GENERAL MOTORS COMPANY
Items
1. G107 Engine Wiring Harness
