G102, G106, G202, and G302

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

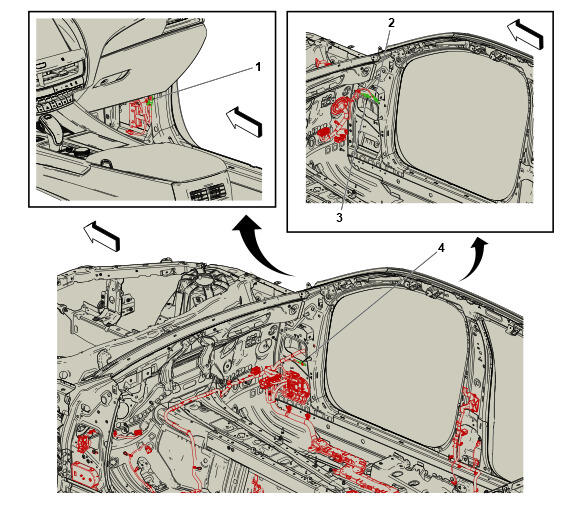

GM5865191Courtesy of GENERAL MOTORS COMPANY
Items
1. G202 Instrument Panel Wiring Harness
2. G102 Forward Lamp Wiring Harness
3. G106 Forward Lamp Wiring Harness
4. G302 Instrument Panel Wiring Harness
