Engine Compartment Components

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

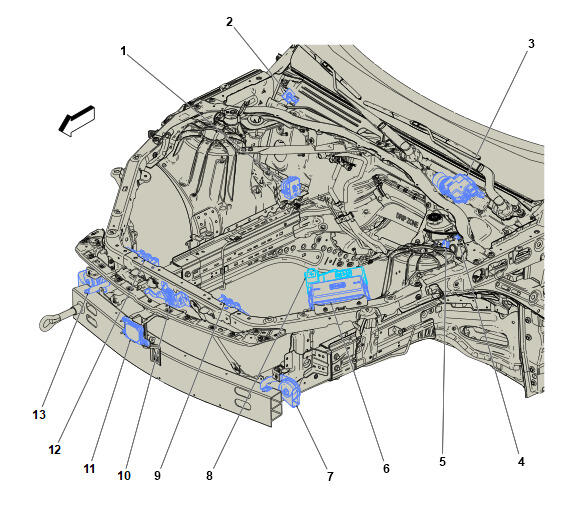

GM5874873Courtesy of GENERAL MOTORS COMPANY
Items
1. P25 Content Theft Deterrent Alarm (UTR) P25 Content Theft Deterrent Alarm (UTR)
2. B108E Ambient Air Quality Sensor - Exterior B108E Ambient Air Quality Sensor - Exterior (-LSY) , or B108E Ambient Air Quality Sensor - Exterior (LSY-UKL)
3. M75 Windshield Wiper Motor M75 Windshield Wiper Motor
4. B20 Brake Fluid Level Sensor B20 Brake Fluid Level Sensor
5. K160 Brake System Control Module K160 Brake System Control Module (LGY/LSY) , or K160 Brake System Control Module (LT4)
6. X50A Engine Wiring Harness Junction Block X50A Engine Wiring Harness Junction Block X1 , or X50A Engine Wiring Harness Junction Block X2 , or X50A Engine Wiring Harness Junction Block X4 (From Auxiliary Generator Battery Jumper) , or X50A Engine Wiring Harness Junction Block X4 (From Batt. Pos.) , or X50A Engine Wiring Harness Junction Block X4 (From Starter Generator)
7. P12A Horn - High Note P12A Horn - High Note
8. X50B Battery Distribution Engine Compartment Fuse Block X50B Battery Distribution Engine Compartment Fuse Block X2 , or X50B Battery Distribution Engine Compartment Fuse Block X3 (LGY/LT4) , or X50B Battery Distribution Engine Compartment Fuse Block X3 (LSY) , or X50B Battery Distribution Engine Compartment Fuse Block X4 , or X50B Battery Distribution Engine Compartment Fuse Block X5 , or X50B Battery Distribution Engine Compartment Fuse Block X6 , or X50B Battery Distribution Engine Compartment Fuse Block X7
9. B58L Airbag Front End Discriminating Sensor - Left B58L Airbag Front End Discriminating Sensor - Left
10. B55 Engine Compartment Cover Switch B55 Engine Compartment Cover Switch
11. B233B Forward Range Radar Sensor - Long Range B233B Forward Range Radar Sensor - Long Range (UGN)
12. B58R Airbag Front End Discriminating Sensor - Right B58R Airbag Front End Discriminating Sensor - Right
13. P12B Horn - Low Note P12B Horn - Low Note
