Roof Stationary Window Adjustment

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Place the rear sunroof sunshade to the fully open position.
Reposition the sunroof window seal to access the roof stationary window bolts.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
For clarity, only one side is shown.

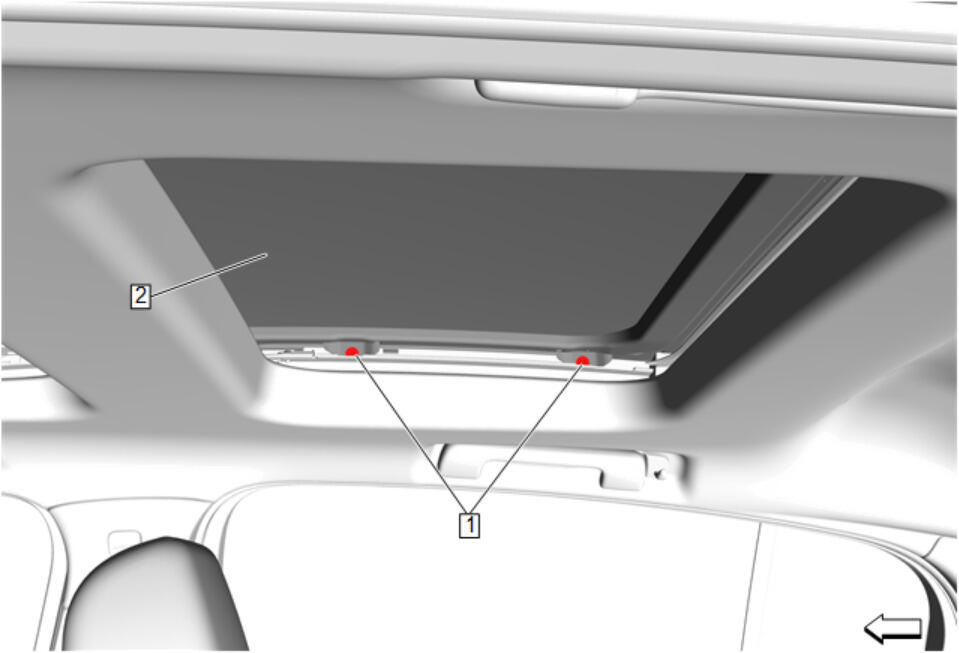

Loose the 4 roof stationary window bolts (1), on both right and left side of the roof stationary window (2).
Cycle the sunroof window to the open position and closed position.
Ensure the roof stationary window is flush to the roof panel.
Courtesy of GENERAL MOTORS COMPANY

Adjust to the proper gap of 1.5 mm between the roof stationary window (1) and the sunroof window (2), measuring the adjustments at the middle of the glass as well as each end of the glass.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Roof Stationary Window Bolt (1) - Tighten [4x] 4 N.m (35 lb in)
Repeat steps 3 through 7 if additional adjustment is needed.
