Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

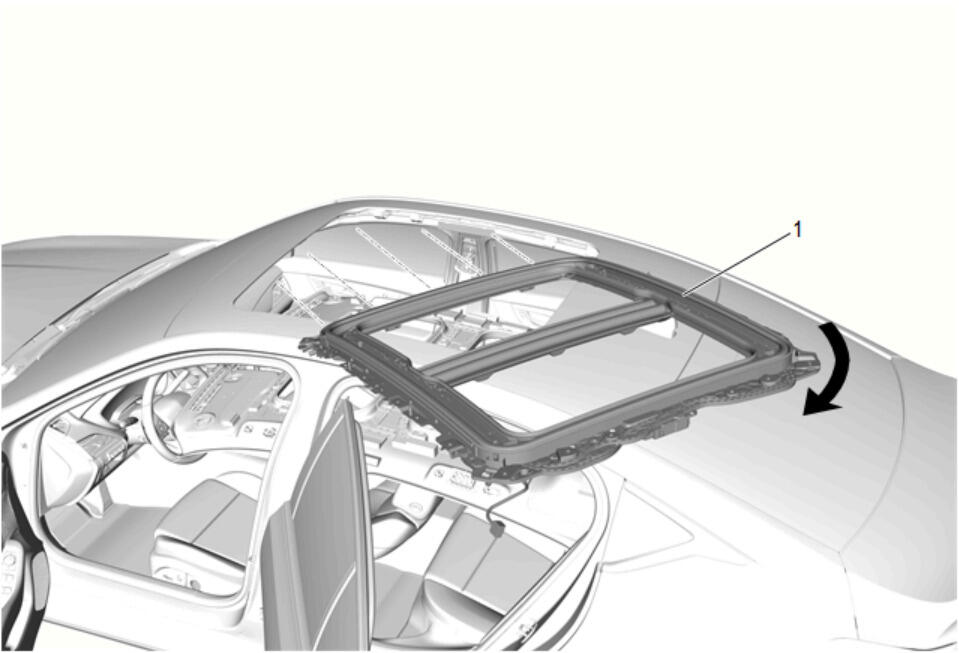

With the aid of an assistant, carefully install the sunroof housing (1).
- CAUTION:
Refer to Fastener Caution .

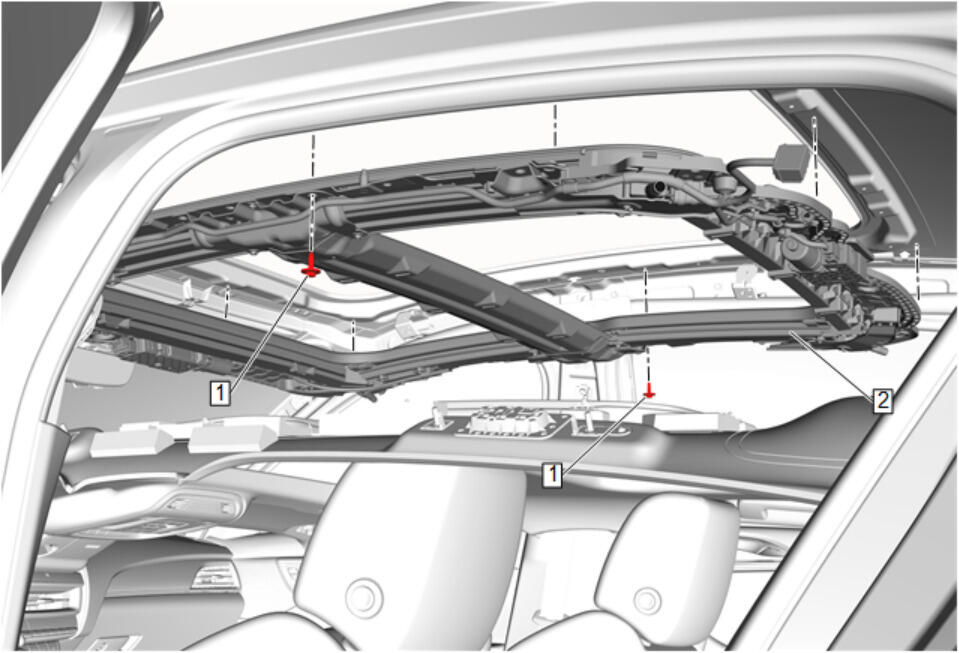

With the aid of an assistant, install and hand tighten the side 2 centermost sunroof module bolts (1).

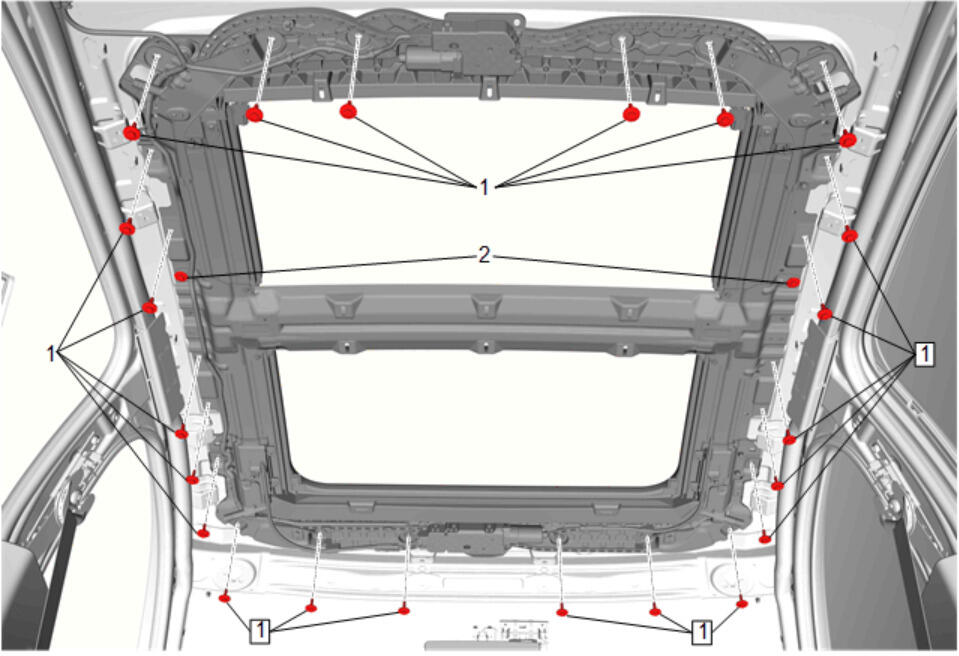

Sunroof Module Bolt (1) - Install and tighten [22x] 9 N.m (80 lb in)
- Sunroof Module Bolt (2) - Tighten [2x] 9 N.m (80 lb in)
- Connect the electrical connectors.

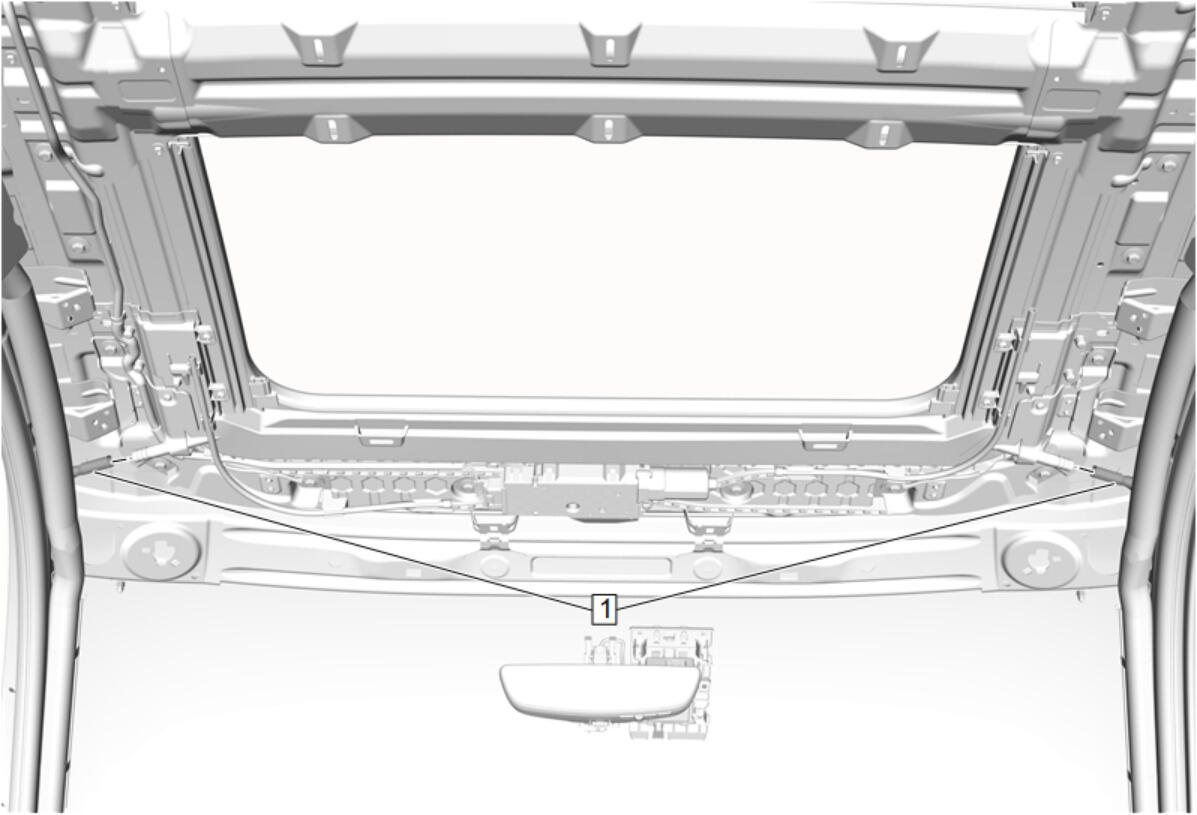

Connect the sunroof housing rear drain hoses (1) to the rear sunroof housing drain gutters.

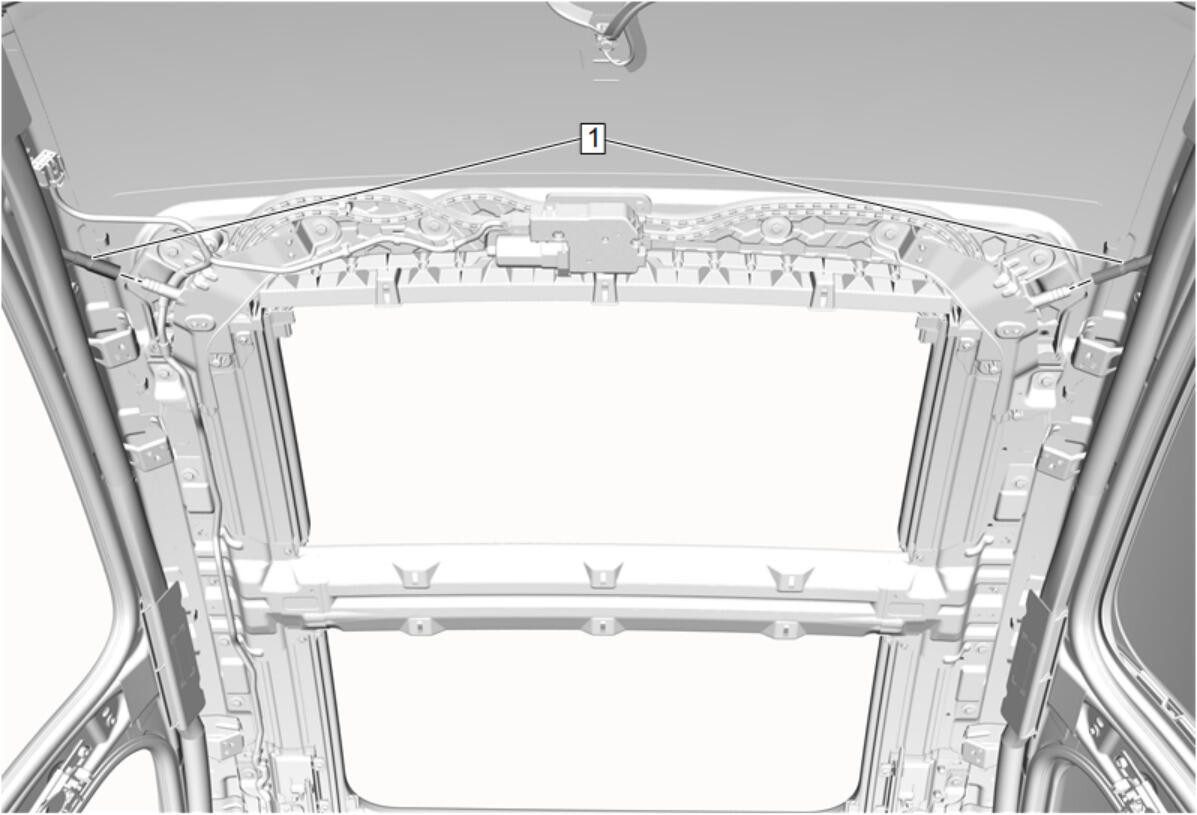

Connect the sunroof housing front drain hoses (1) to the front sunroof housing drain gutters.
- Headlining Trim Panel - Install - Headlining Trim Panel Replacement (With C3U)
- Place the driver and passenger seat back to the full upright position.
Roof Stationary Window (2) - Install - Roof Stationary Window Replacement
Sunroof Window (2) - Install - Sunroof Window Replacement
- Perform the necessary initialization procedure. Sunroof/Sunshade Motor Initialization
- Perform the necessary programming and setup procedure: Control Module References
