Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

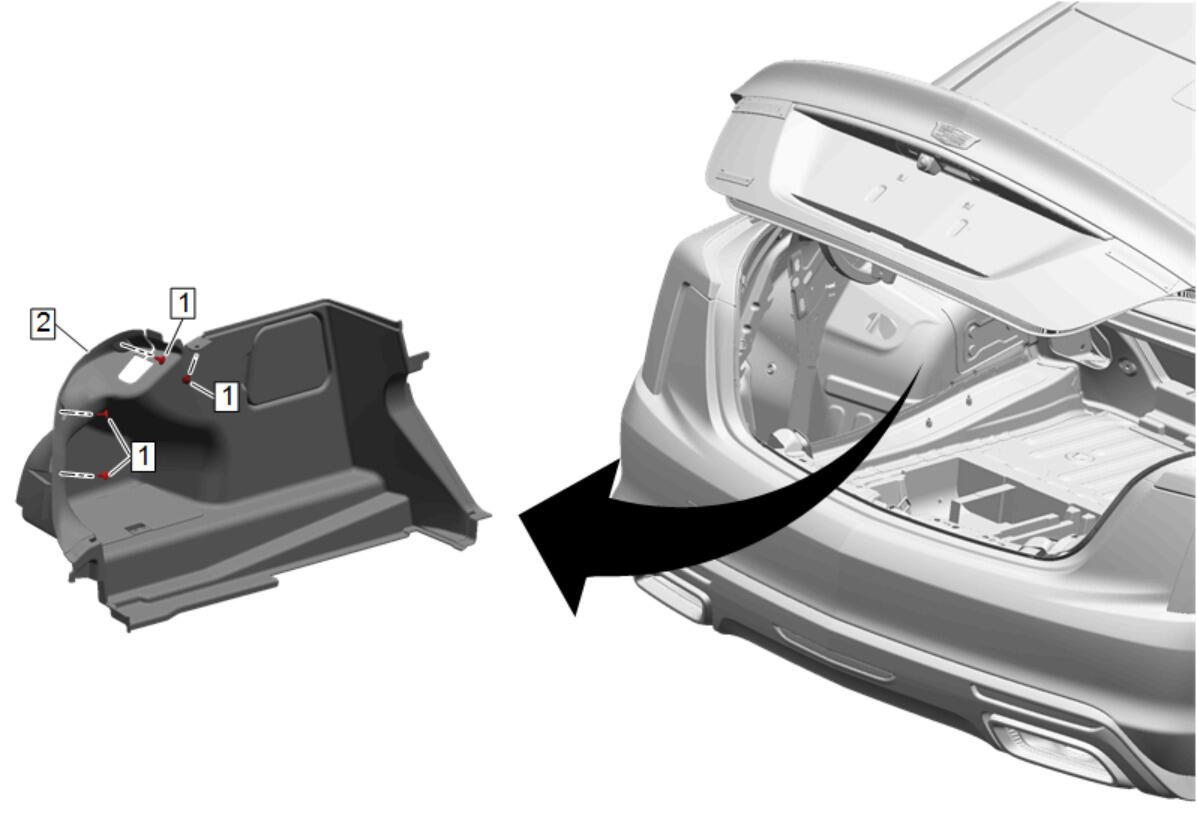

Rear Compartment Side Trim - Left Side (2) - Remove - Rear Compartment Side Trim Replacement - Left Side

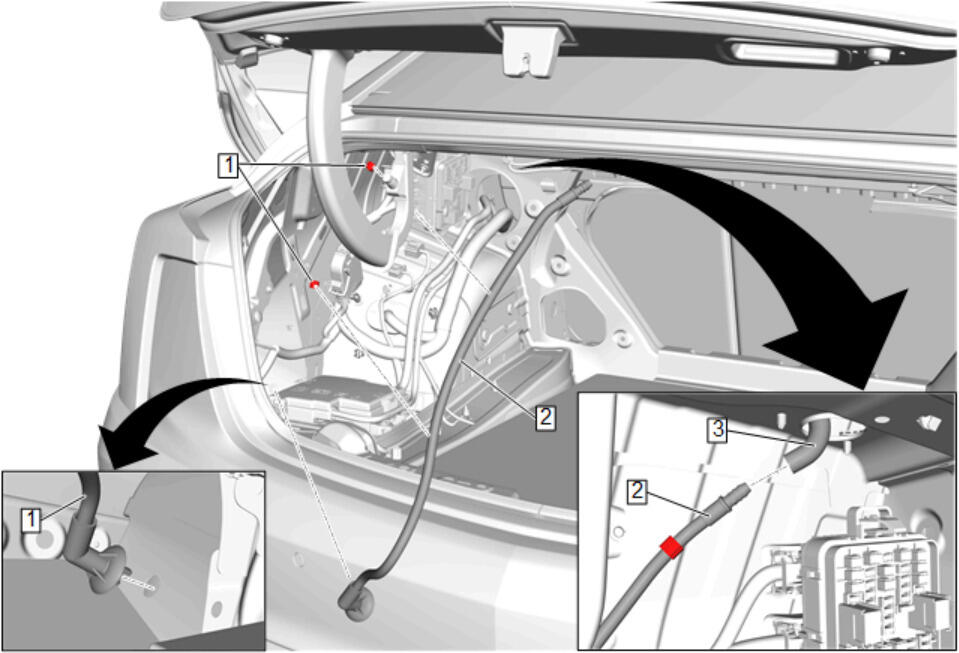

Release the 2 sunroof housing rear drain hose clips (1).
- Sunroof Housing Rear Drain Hose - Lower (2) @ Quarter Inner Panel Extension - Disconnect
- Sunroof Housing Rear Drain Hose - Lower (2) @ Sunroof Housing Rear Drain Hose - Upper (3) - Disconnect
- Sunroof Housing Rear Drain Hose - Lower (2) - Remove
- It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (With C3U)
Reposition the wiring harness.
- Release the sunroof housing rear drain hose clip (1).
Sunroof Housing Rear Drain Hose - Upper (2) @ Sunroof Housing Drain Gutter (1) - Disconnect
- Sunroof Housing Rear Drain Hose - Upper (2) - Remove
