Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

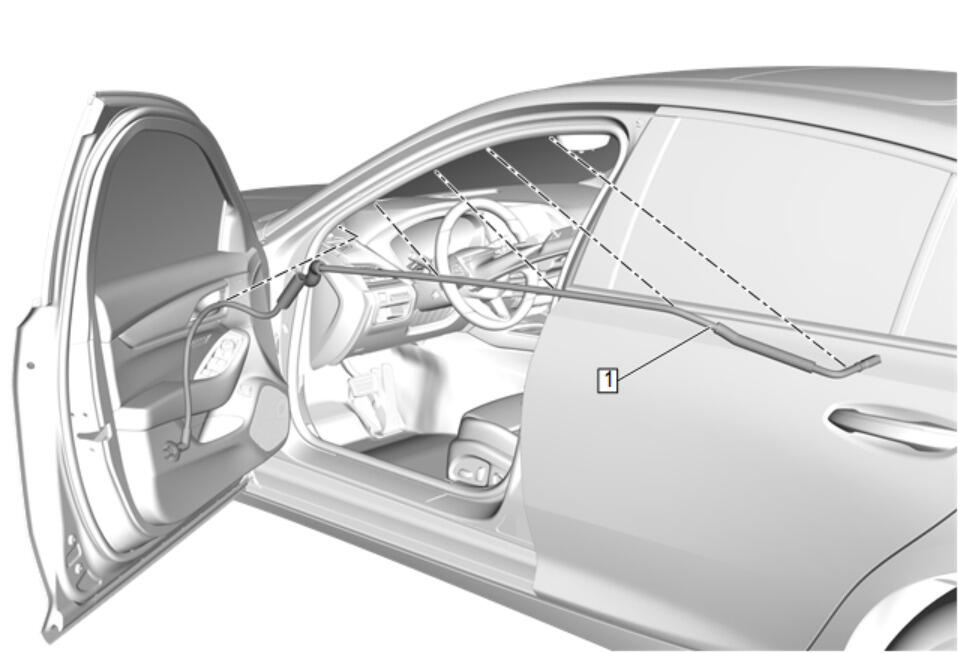

Sunroof Housing Front Drain Hose (1) - Install

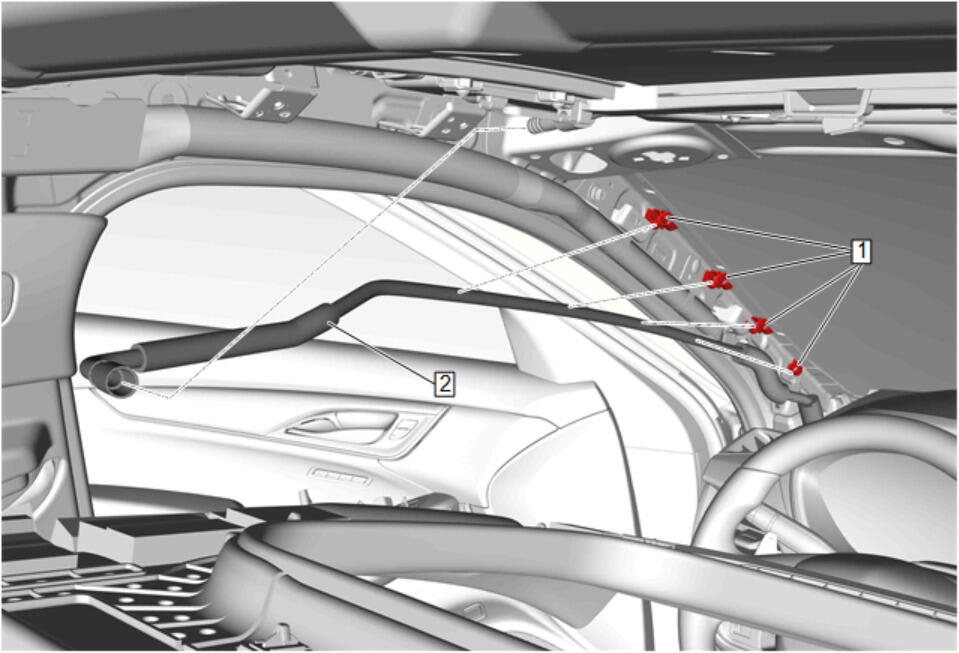

Sunroof Housing Front Drain Hose (2) @ Sunroof Housing Drain Gutter - Connect
- Secure the 4 sunroof housing front drain hose clips (1).
- Secure the wiring harness.

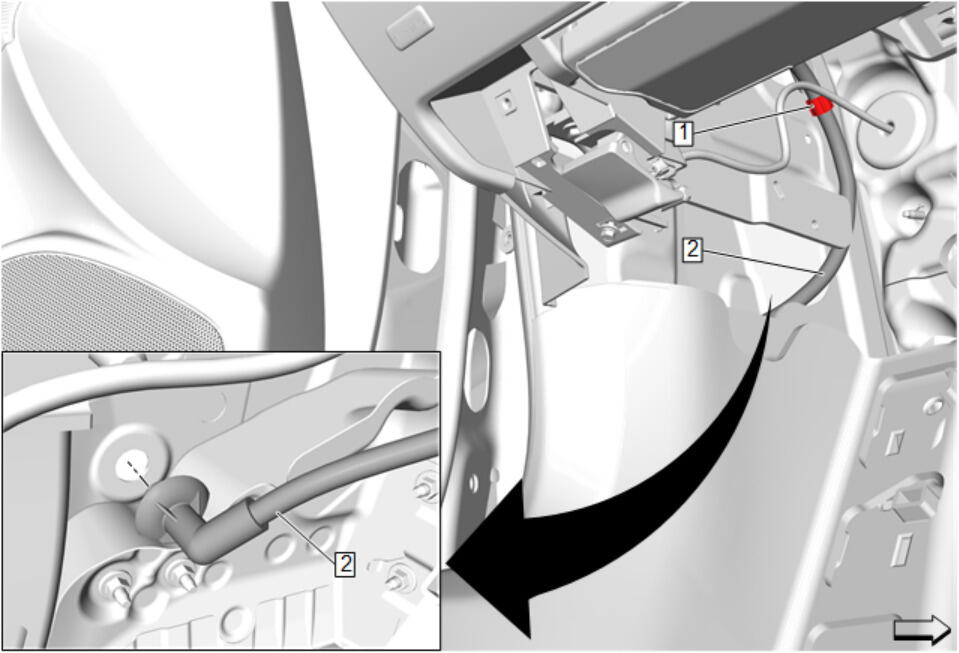

Sunroof Housing Front Drain Hose (2) @ Body Hinge Pillar Outer Panel - Connect
- Secure the sunroof housing front drain hose clip (1).
- Secure the body hinge pillar sound barrier.
Instrument Panel Lower Trim Panel Insulator (1) - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
- Headlining Trim Panel - Install - Headlining Trim Panel Replacement (With C3U)
- Windshield Garnish Molding - Install - Windshield Garnish Molding Replacement
- Water test and inspect sunroof for proper operation.
