Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Place the sunroof window in the full open position.
- NOTE:

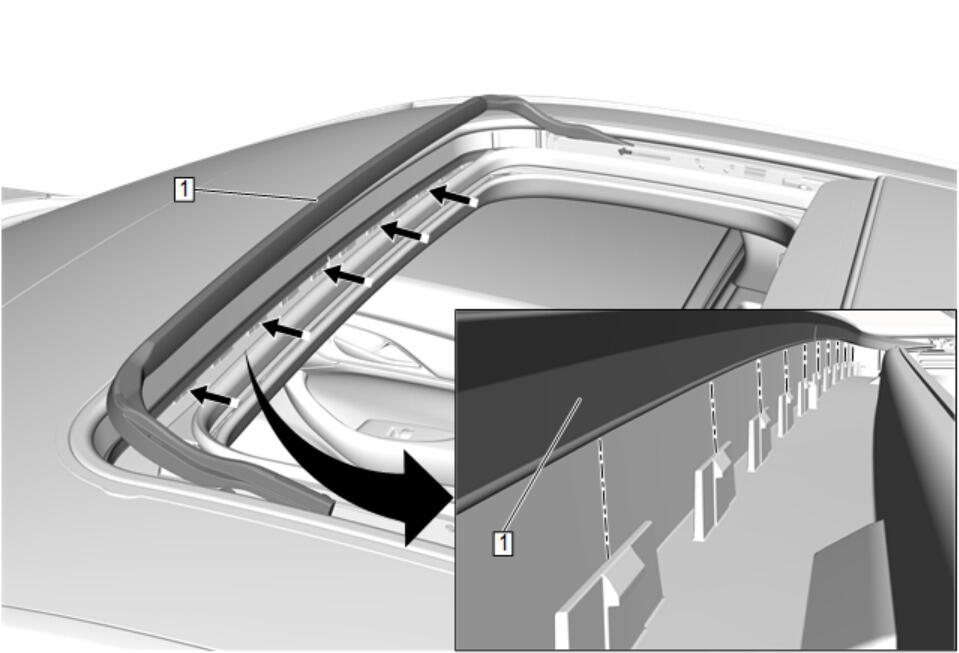

- Observe the seat for the sunroof air deflector fabric stiffener in the locking guide.
- It will be necessary to hold the sunroof air deflector in place due to spring tension.

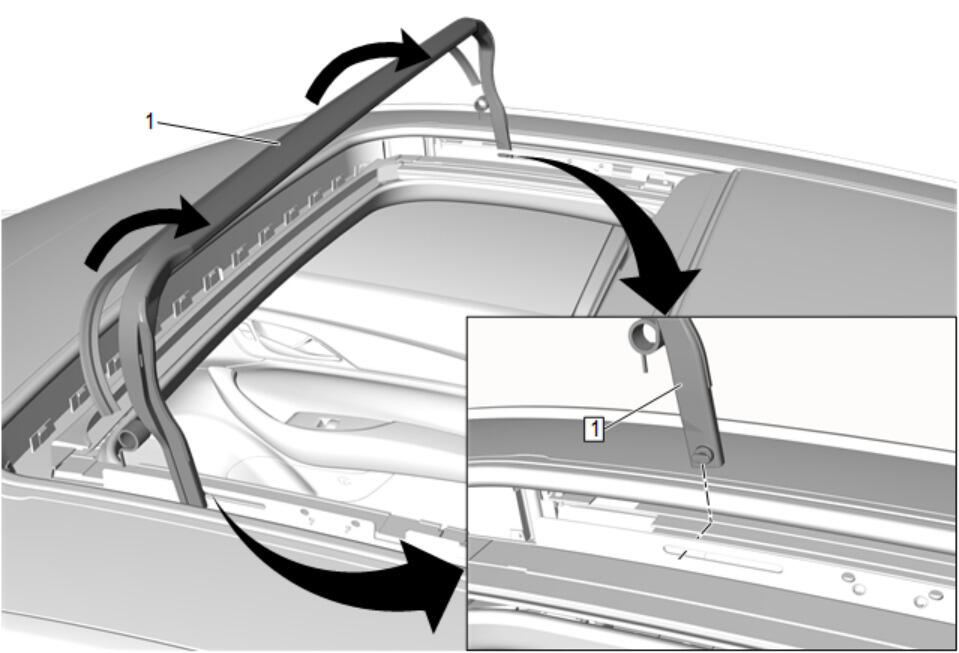

Release the retainers at the sunroof air deflector (1).
Pivot the sunroof air deflector (1) toward the rear end of the vehicle.
- Sunroof Air Deflector (1) - Remove
- Transfer components as necessary.
