Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

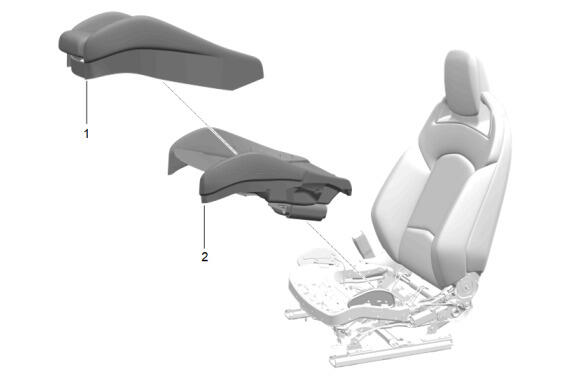

Front Seat Back Cover and Pad (1, 2) - Remove - Front Seat Back Cover and Pad Replacement (Blackwing)
Front Seat Cushion Cover and Pad (1, 2) - Remove - Front Seat Cushion Cover and Pad Replacement (Blackwing)

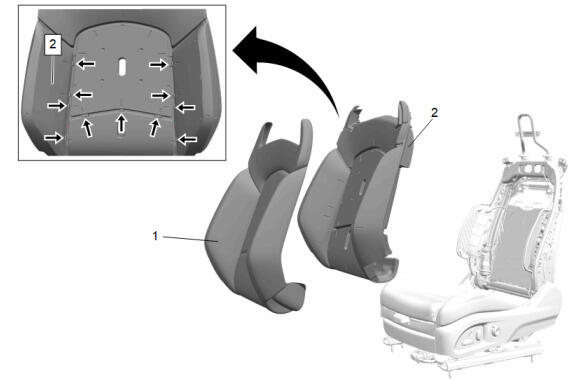

Front Seat Back Side Bolster Bladder (1) - Remove [2x] - Front Seat Back Side Bolster Bladder Replacement
Front Seat Cushion Outer Finish Cover Support (1) - Remove [2x] - Front Seat Cushion Outer Finish Cover Support Replacement
Disconnect the electrical connector and reposition the wiring harness as necessary.
- Release the front seat back lumbar pump retainer and reposition the pump.
- Release the retainers.
- Front Seat Lumbar Support (1) - Remove
