Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:
Ensure the seat heater is not folded or creased during installation as damage to the internal circuitry may occur, causing performance issues and damage to seat components.

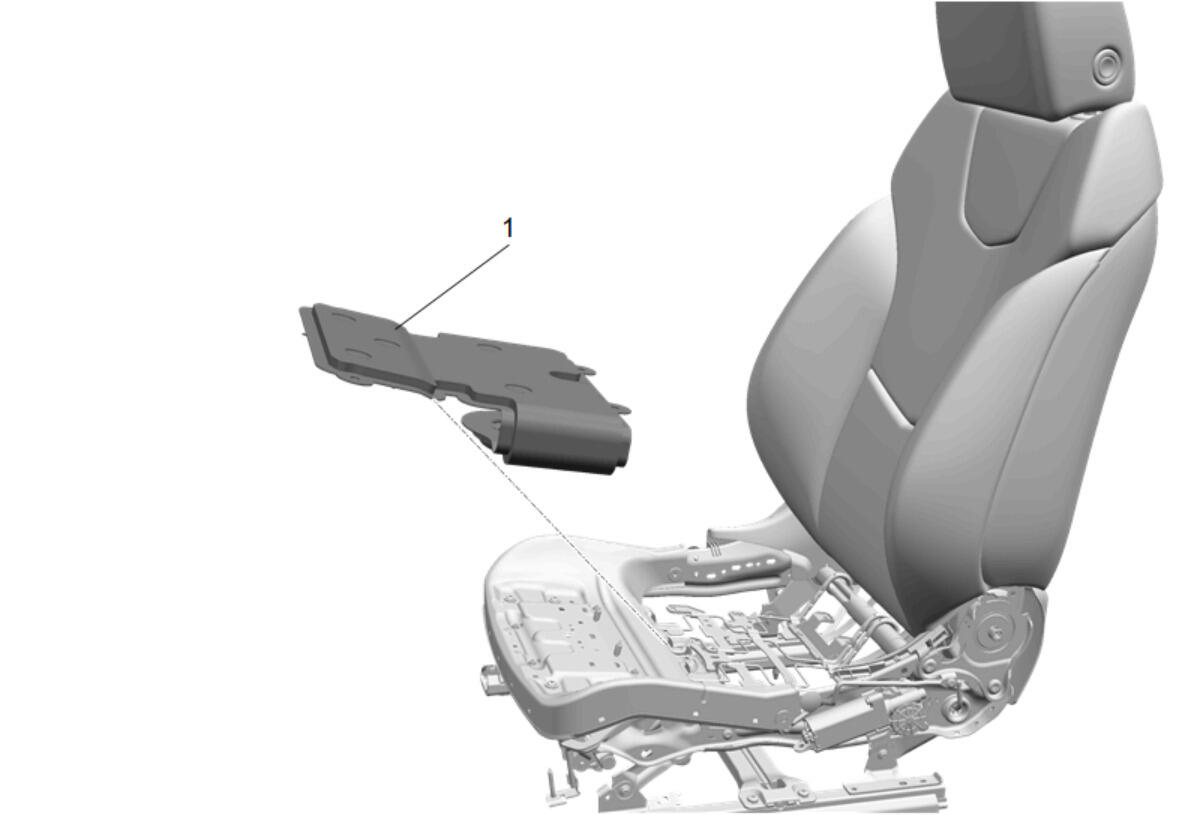

Install the front seat vent fan mat (1) onto the front seat cushion pad.
- Front Seat Cushion Cover and Pad - Install - Front Seat Cushion Cover and Pad Replacement
- If servicing the passenger seat, perform the necessary programming and setup procedure for the passenger presence system. Control Module References
