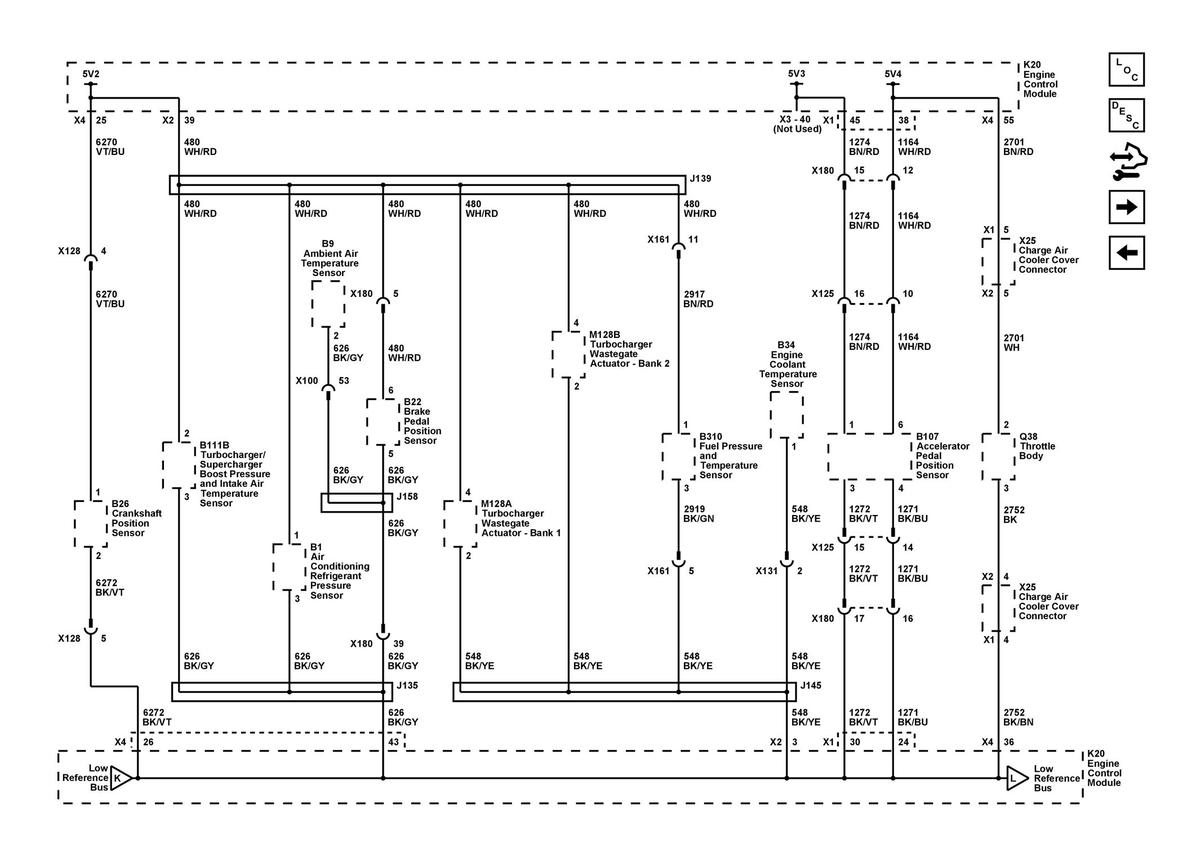

5V2, 5V3, 5V4 and Low Reference Bus (2 of 3)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
GM5755842Courtesy of GENERAL MOTORS COMPANY
