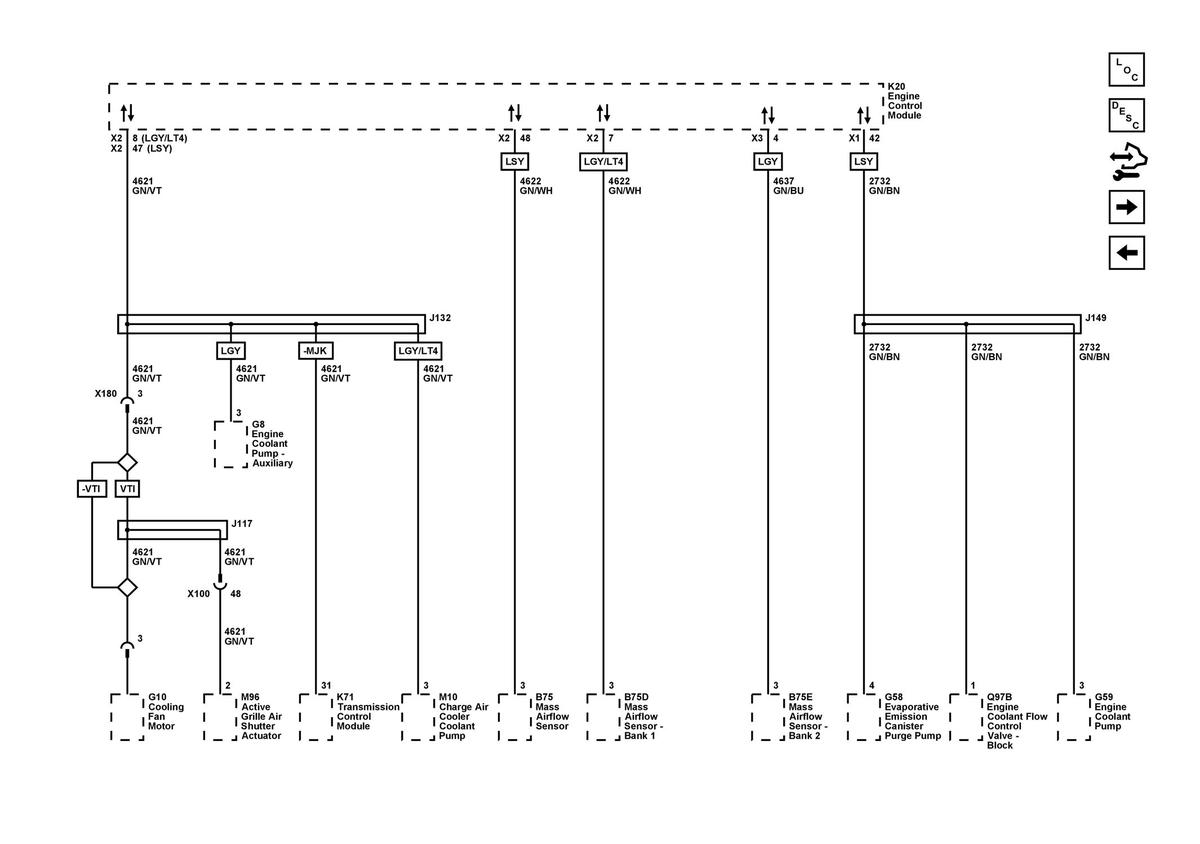

Engine Control Module Local Interconnect Network (LIN) Busses 1, 2, 4 and 5

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
