Section 371 (Data Communications - Schematic Wiring Diagrams)
>>
SchematicWiring Diagrams
>>

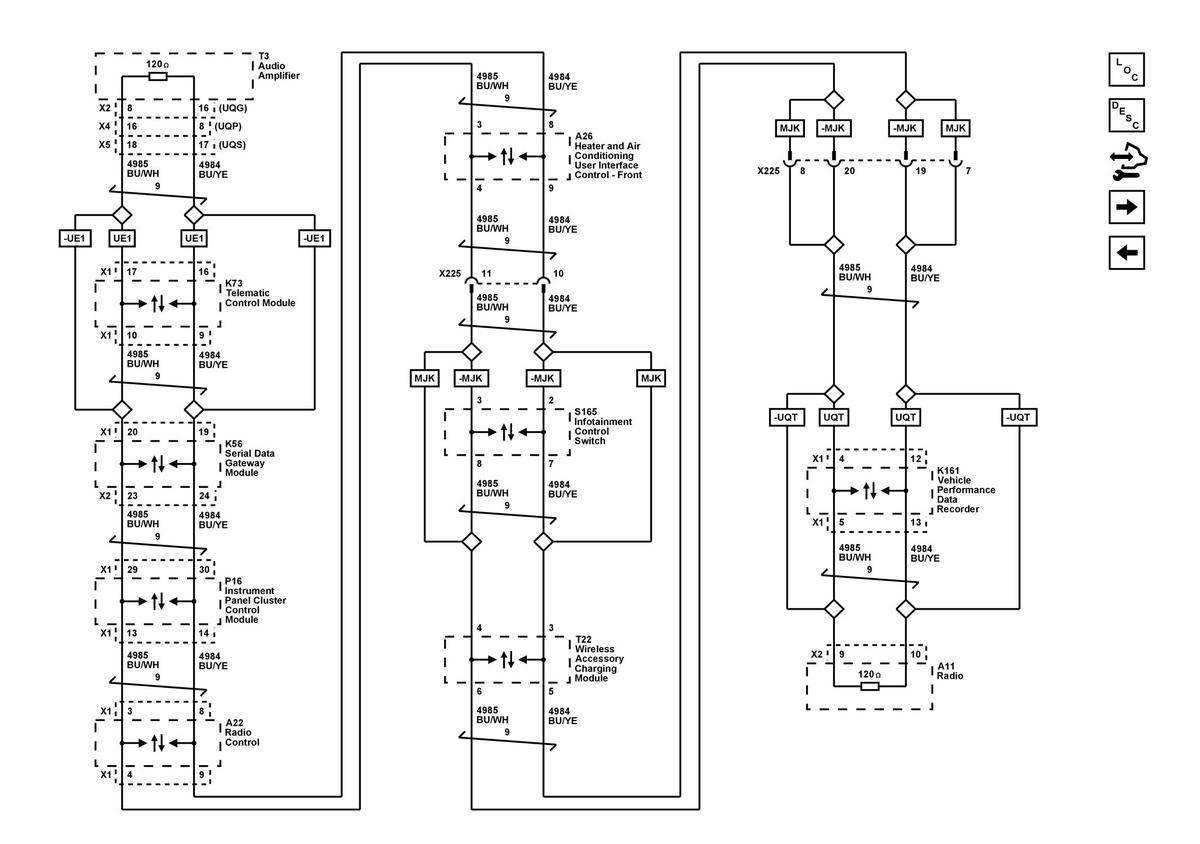

Data Communication Wiring Schematics
>>
Can 5
Can 5
WARNING:
This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
