Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Oil Separator to Air Cleaner Outlet Duct)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Intake Manifold Cover Replacement |
|

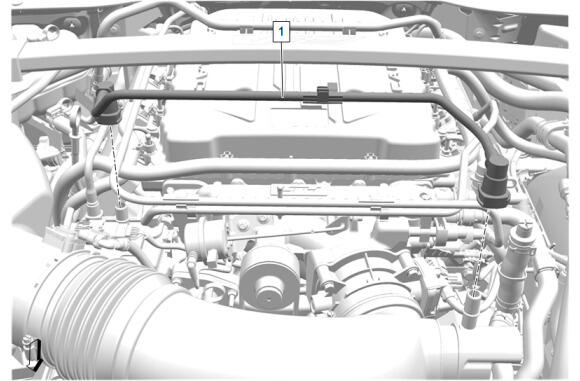

| 1 | Positive Crankcase Ventilation Tube Procedure Remove the positive crankcase ventilation tube from the positive crankcase ventilation oil separator and the air cleaner outlet duct. Plastic Collar Quick Connect Fitting Service |
