Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5873720Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) - Remove - Intake Manifold Cover Replacement

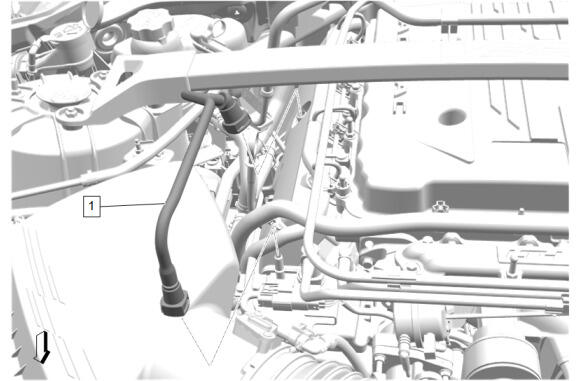

  2. GM5873990Courtesy of GENERAL MOTORS COMPANY

    Positive Crankcase Ventilation Fresh Air Tube (1) - Remove - Plastic Collar Quick Connect Fitting Service
