Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

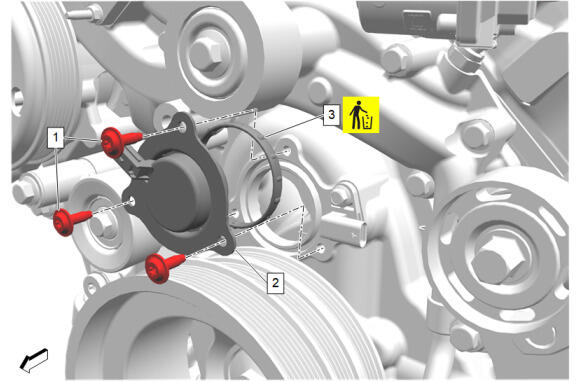

Camshaft Position Actuator Magnet Gasket (3) - Install NEW
- Camshaft Position Actuator Magnet (2) - Install
- Camshaft Position Actuator Magnet Bolt (1) - Install and tighten [3x] 10 N.m (89 lb in)

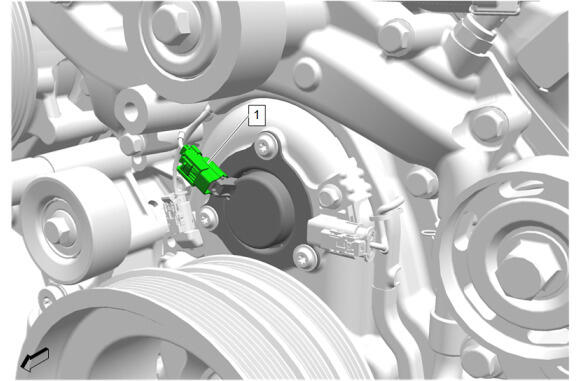

Electrical Connector (1) - Install
Supercharger Belt Idler Pulley (2) - Install - Supercharger Belt Idler Pulley Replacement (Engine Coolant Manifold - Lower)
CAUTION:
Refer to Fastener Caution .
