Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Rearview Driver Information Camera Rear Closure Coaxial Cable (1) - Install

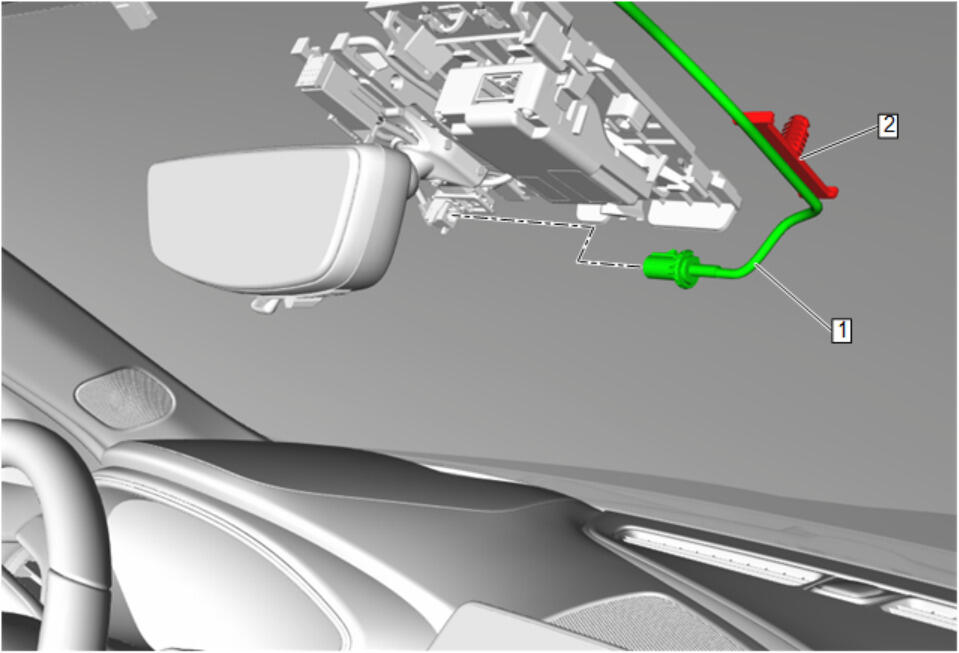

Secure the rearview driver information camera rear closure coaxial cable retaining tab (2) to the front view driver information camera bracket.
- Rearview Driver Information Camera Rear Closure Coaxial Cable (1) @ Inside Rearview Mirror - Connect

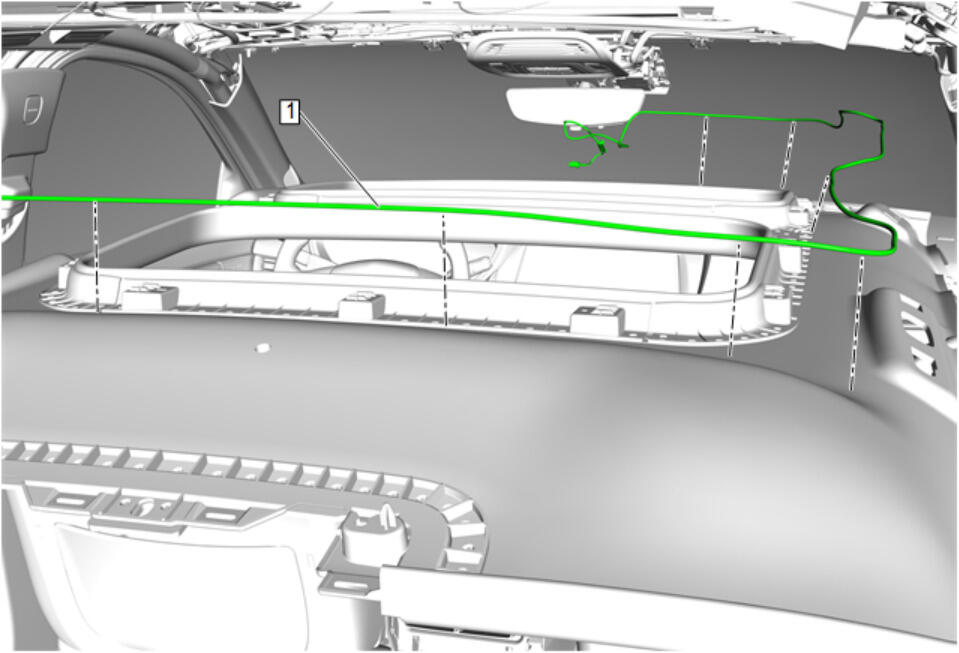

Secure the rearview driver information camera rear closure coaxial cable (1) inside the side guide retainers.

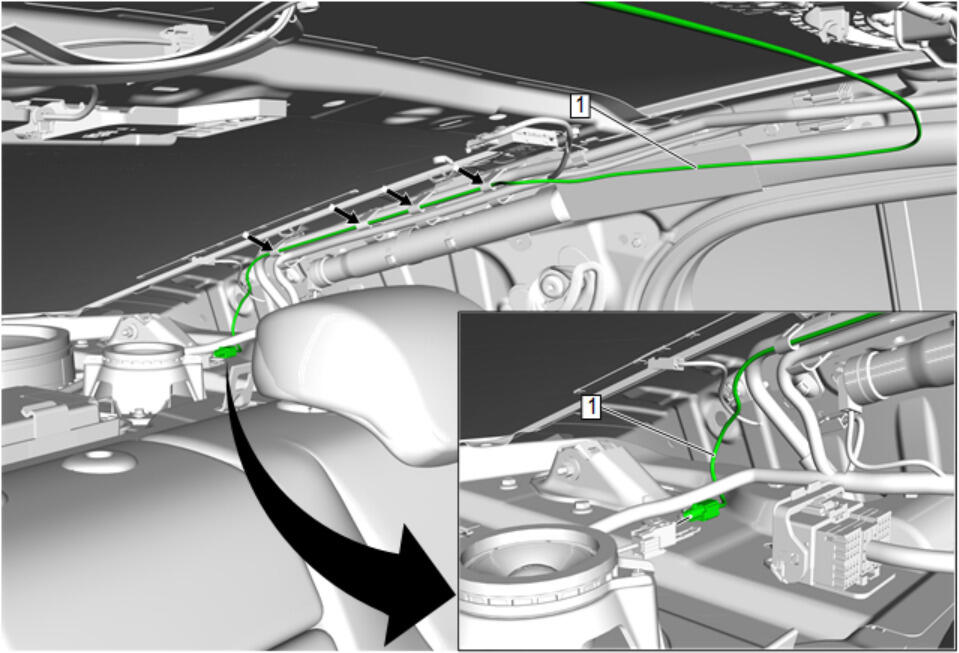

- Rearview Driver Information Camera Rear Closure Coaxial Cable (1) @ Body Rear Wiring Harness - Connect
Rear Window Panel Trim (2) - Install - Rear Window Panel Trim Replacement
- Headlining Trim Panel - Install - Headlining Trim Panel Replacement (With C3U) , or Headlining Trim Panel Replacement (Without C3U)
