Front View Driver Information Camera Replacement (Without VT1)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

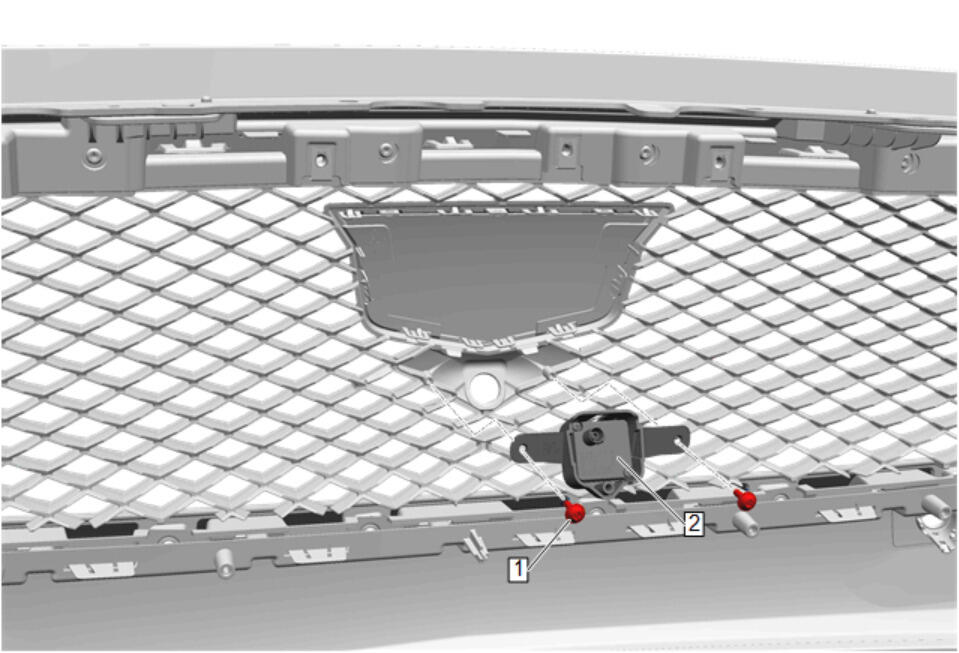

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement (without Blackwing) , or Front Bumper Fascia Replacement (with Blackwing)
1	Front View Driver Information Camera Bolt [2x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Front View Driver Information Camera Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Replacement (without Blackwing) , or Front Bumper Fascia Replacement (with Blackwing)

Front View Driver Information Camera Bolt [2x]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Front View Driver Information Camera

Procedure

Disconnect the electrical connector.
Perform the necessary programming and setup procedure: Control Module References
