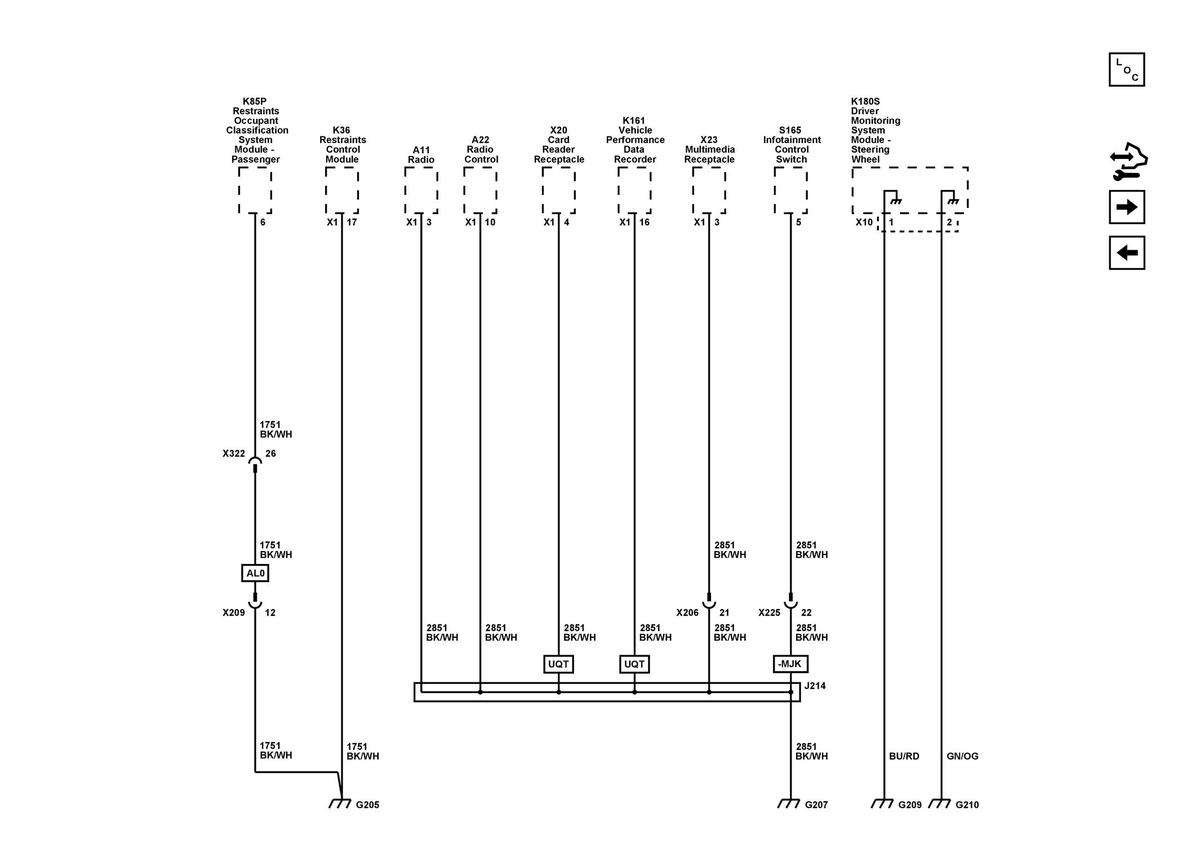

G205, G207, G209 and G210

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
GM5755807Courtesy of GENERAL MOTORS COMPANY
