Section 341 (Wiring Systems And Power Management - Power Distribution Wiring Schematics)
>>
Schematic Wiring Diagrams
>>
Power Distribution Wiring Schematics
>>

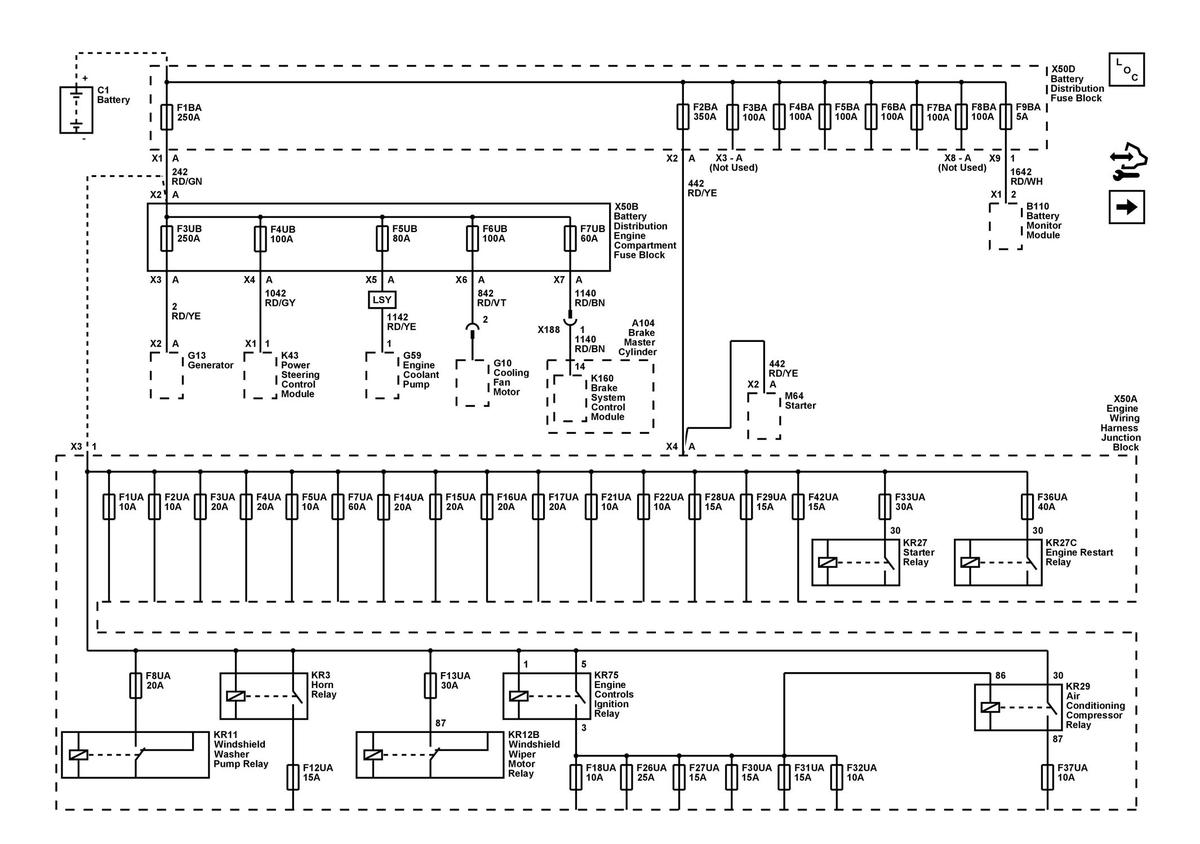

B+ Bus
B+ Bus
WARNING:
This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
