Low Frequency Rear Bumper Antenna Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

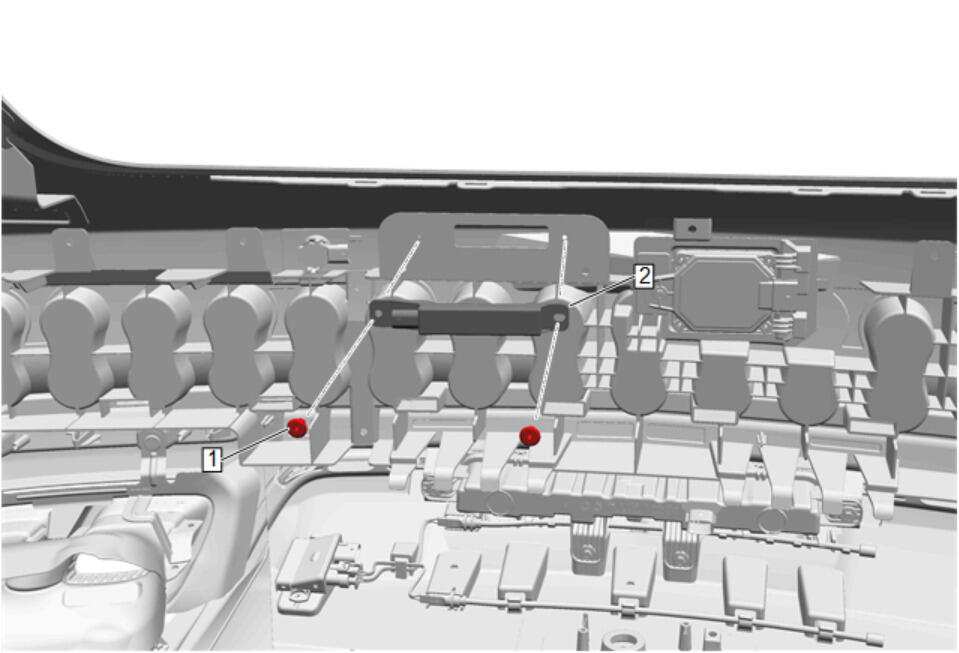

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Bumper Fascia Removal and Installation (without Blackwing) , or Rear Bumper Fascia Removal and Installation (with Blackwing) |
|
| 1 | Rivet [2x]
WARNING:
Procedure Drill out the rivet. |
| 2 | Low Frequency Rear Bumper Antenna Procedure Disconnect the electrical connector. |
