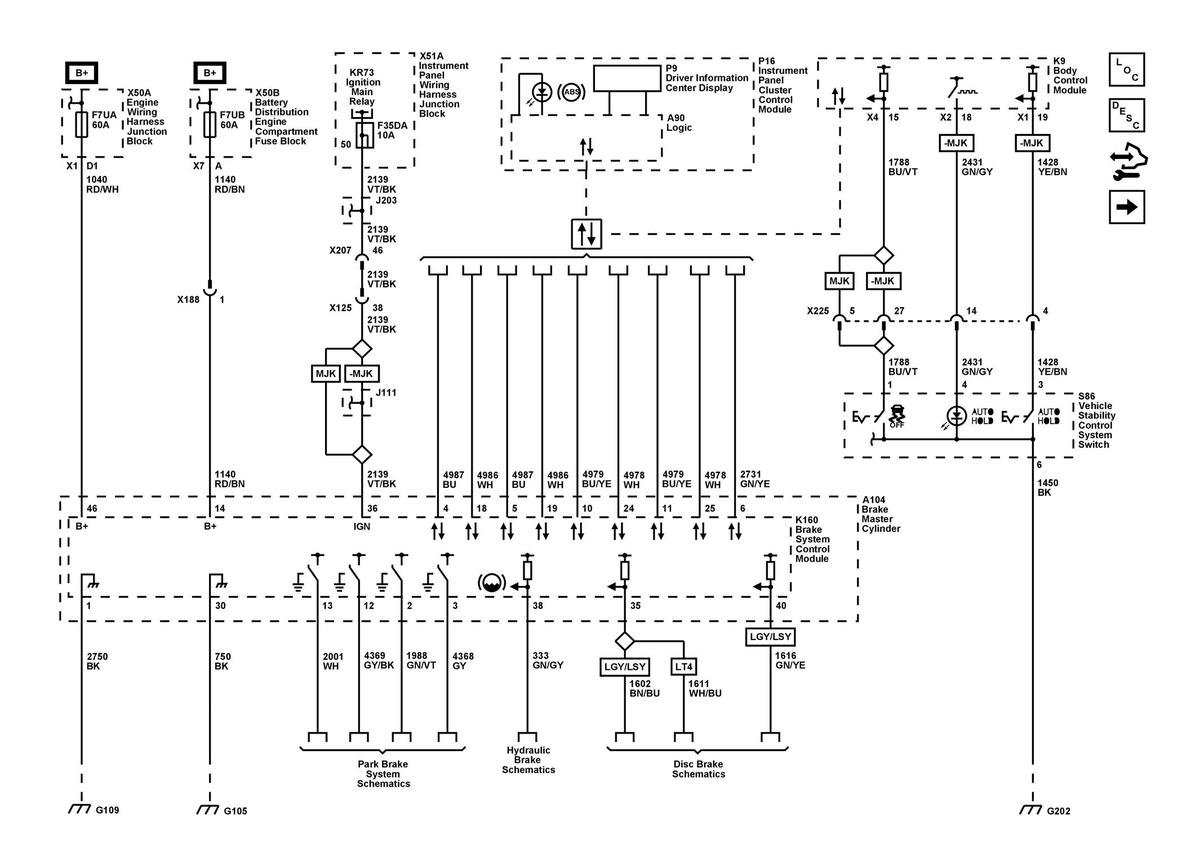

Power, Ground, Serial Data, Traction Control, Auto Hold and References

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
GM5755904Courtesy of GENERAL MOTORS COMPANY
