Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation (without J57)Tire and Wheel Removal and Installation (with J57)

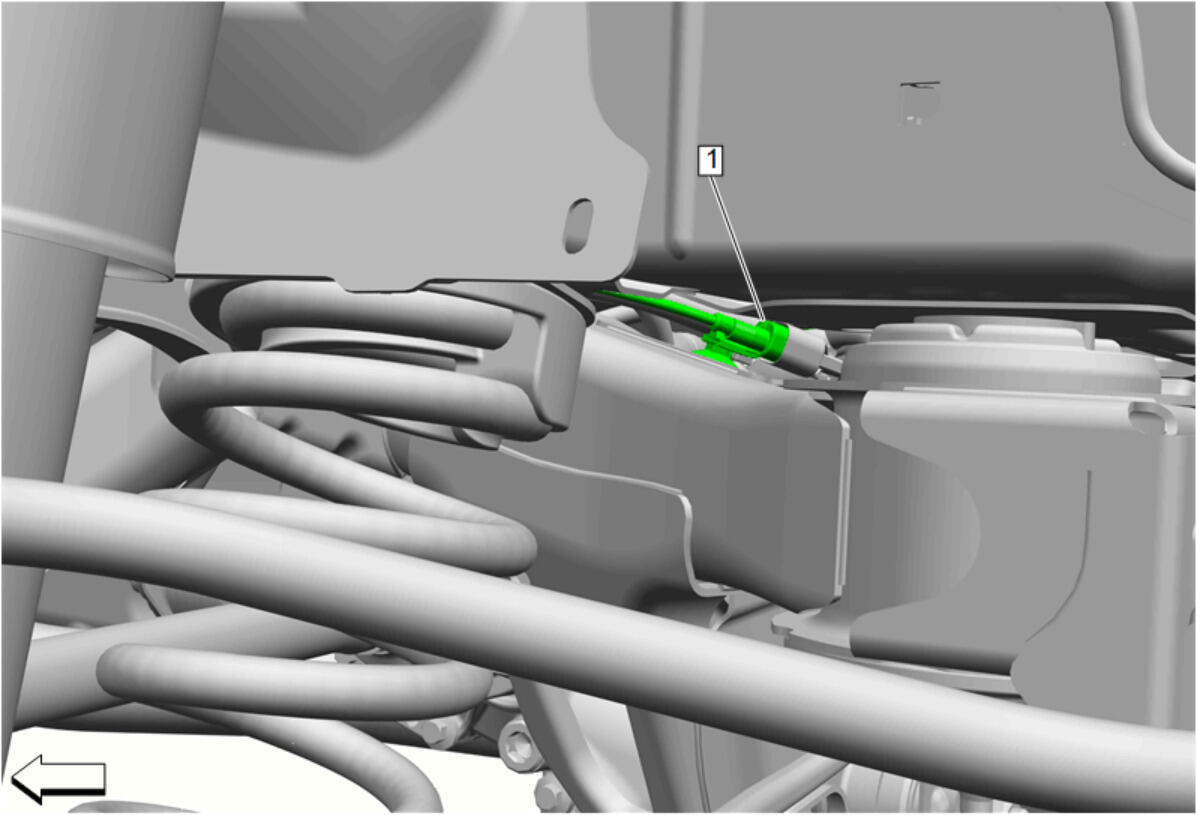

Rear Wheel Speed Electrical Connector (1) - Disconnect

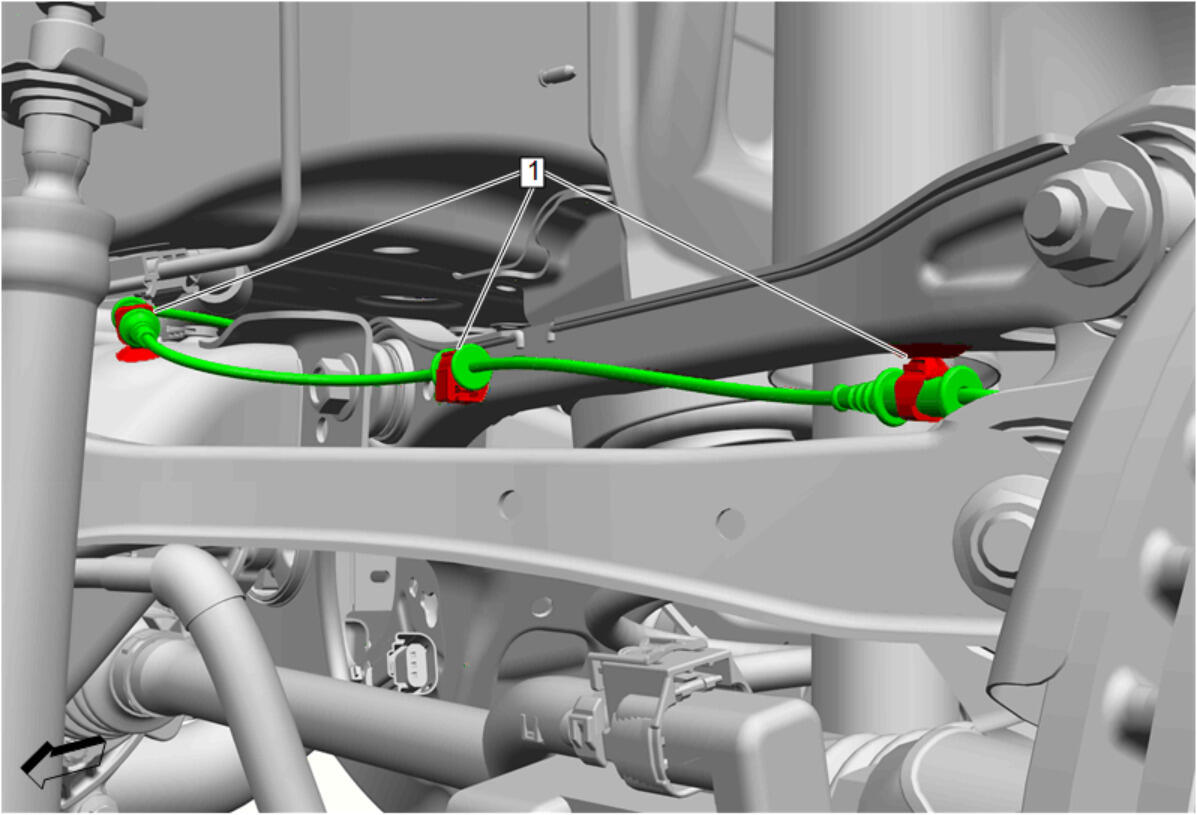

Retainer (1) - Release [3x]
Rear Wheel Speed Sensor Bolt (1) - Remove
- Rear Wheel Speed Sensor (2) - Remove
