Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Front Wheelhouse Liner - Reposition - Front Wheelhouse Liner ReplacementFront Wheelhouse Liner Replacement (Blackwing)

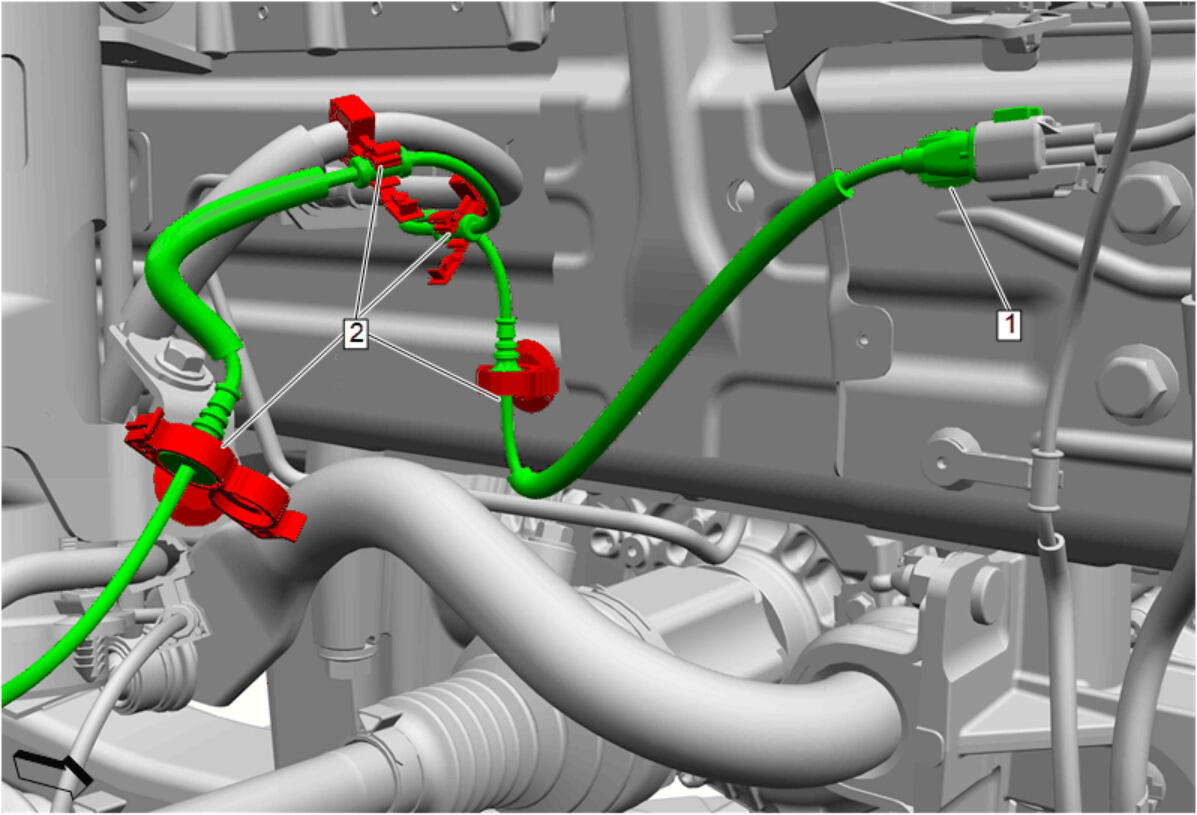

Front Wheel Speed Sensor Electrical Connector (1) - Disconnect
- Retainer (2) - Release [4x]

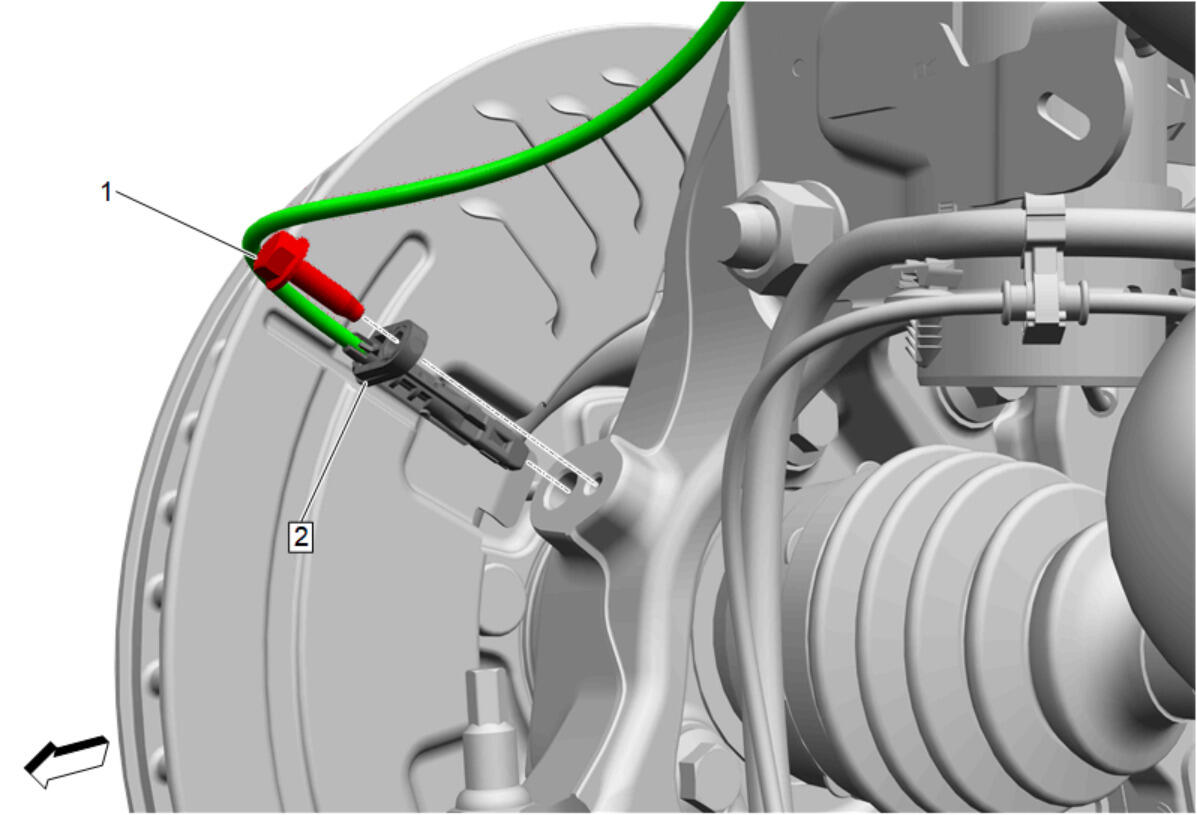

Front Wheel Speed Sensor Bolt (1) - Remove
- Front Wheel Speed Sensor (2) - Remove
