Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation (without J57)Tire and Wheel Removal and Installation (with J57)
  3. Front Wheelhouse Liner - Reposition - Front Wheelhouse Liner ReplacementFront Wheelhouse Liner Replacement (Blackwing)

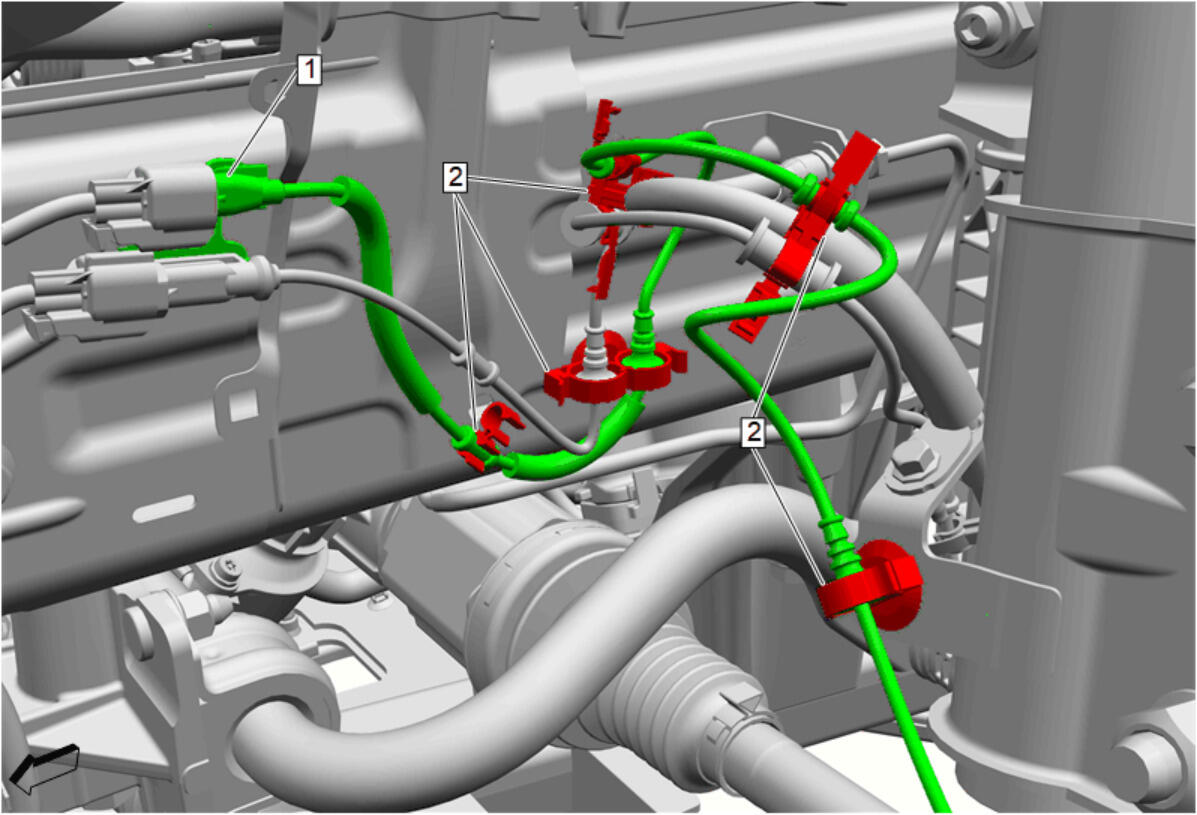

  4. GM5316712Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Electrical Connector (1) - Disconnect

  5. Retainer (2) - Release [5x]

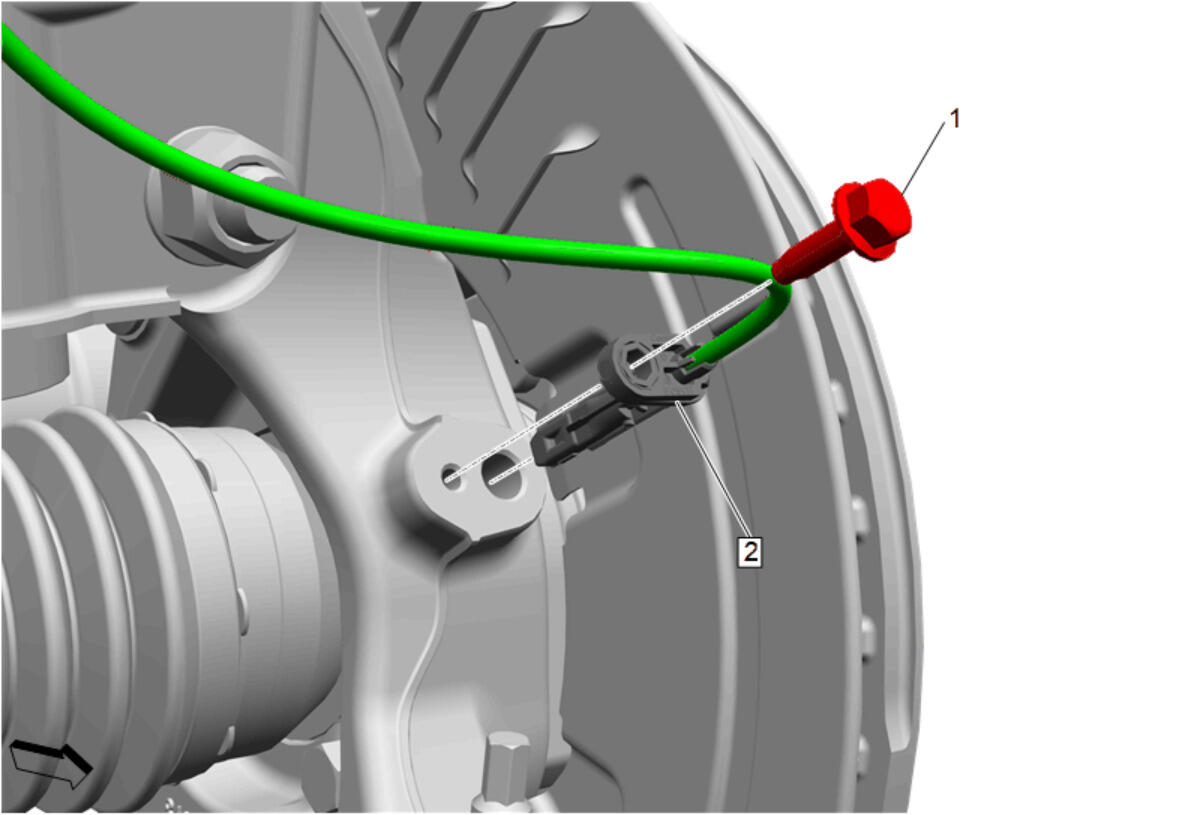

  6. GM5316723Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Bolt (1) - Remove

  7. Front Wheel Speed Sensor (2) - Remove
