Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

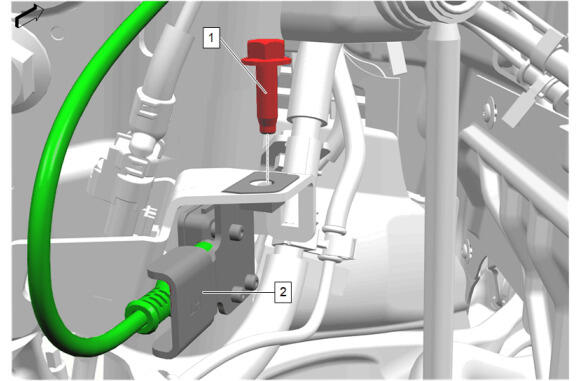

  1. Electronic Suspension Wheel Front Vertical Accelerometer (2) - Install
    GM5873013Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Refer to Fastener Caution .

  2. Electronic Suspension Front Vertical Accelerometer Bolt (1) - Install and tighten9 N.m (80 lb in)

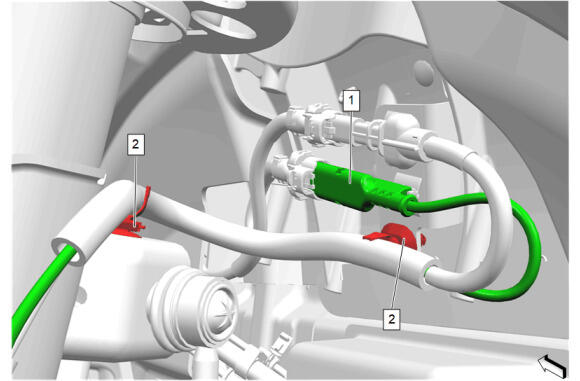

  3. Install the 2 electronic suspension wheel front vertical accelerometer retainers (2).
    GM5873011Courtesy of GENERAL MOTORS COMPANY
  4. Connect the electronic suspension wheel front vertical accelerometer electrical connector (1).
  5. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
  6. Remove the support and lower the vehicle.
