Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

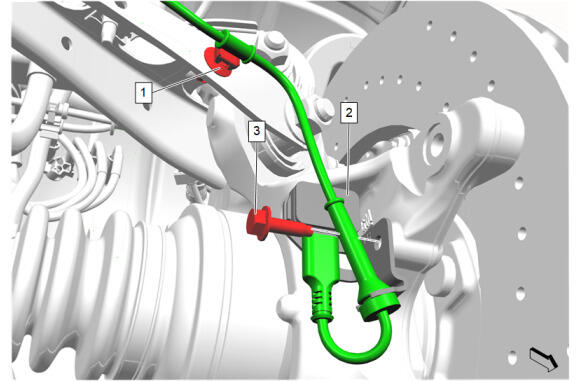

  1. Electronic Suspension Rear Vertical Accelerometer (2) - Install
    GM5869281Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Refer to Fastener Caution .

  2. Electronic Suspension Rear Vertical Accelerometer Bolt (3) - Install and tighten9 N.m (80 lb in)
  3. Install the electronic suspension rear vertical accelerometer retainer (1).

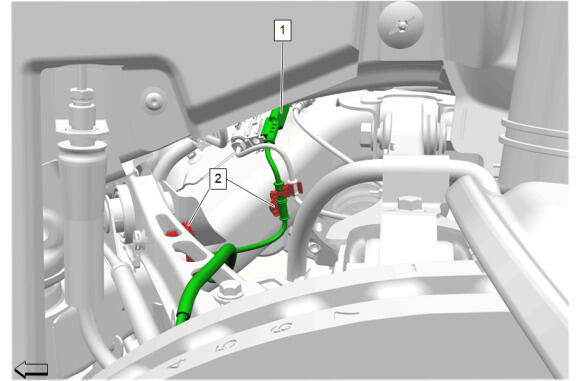

  4. Install the 2 electronic suspension rear vertical accelerometer retainers (2).
    GM5869283Courtesy of GENERAL MOTORS COMPANY
  5. Connect the electronic suspension rear vertical accelerometer electrical connector (1).
  6. Parking Brake Caliper - Install - Parking Brake Caliper Replacement (J57, J6H)
  7. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
  8. Remove the support and lower the vehicle.
