Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

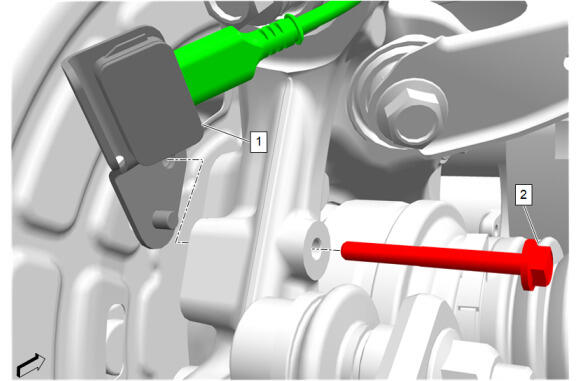

  1. Electronic Suspension Rear Vertical Accelerometer (1) - Install
    GM5914700Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Refer to Fastener Caution .

  2. Electronic Suspension Rear Vertical Accelerometer Bolt (2) - Install and tighten9 N.m (80 lb in)
  3. Install the 3 electronic suspension rear vertical accelerometer retainers (1).
    GM5324072Courtesy of GENERAL MOTORS COMPANY
  4. Install the 2 electronic suspension rear vertical accelerometer retainers (2).
    GM5324071Courtesy of GENERAL MOTORS COMPANY
  5. Connect the electronic suspension rear vertical accelerometer electrical connector (1).
  6. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
  7. Remove the support and lower the vehicle.
  8. Clear DTCs
