Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:
Ensure the Outer Tie Rod Boot is not twisted or deformed during assembly. If the boot is twisted or deformed, damage to the boot will occur.
NOTE:Some components not shown for graphic clarity.
Steering Linkage Outer Tie Rod (1) - Install
- CAUTION:NOTE:
Some components not shown for graphic clarity.
Steering Linkage Outer Tie Rod Nut (1) - Install and tighten
- First Pass: 35 N.m (26 lb ft)
- Final Pass: (40 - 50 degrees)
- NOTE:
Some components not shown for graphic clarity.
Tighten the steering linkage inner tie rod nut (1) during the front toe adjustment procedure.

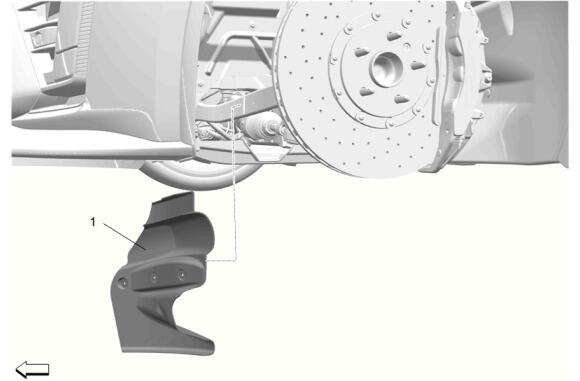

Front Brake Rotor Cooling Duct Deflector (1) - Install - Front Brake Rotor Cooling Duct Deflector Replacement
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
- Lower the vehicle.
- Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
