Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Lifting and Jacking the Vehicle
Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
Courtesy of GENERAL MOTORS COMPANY

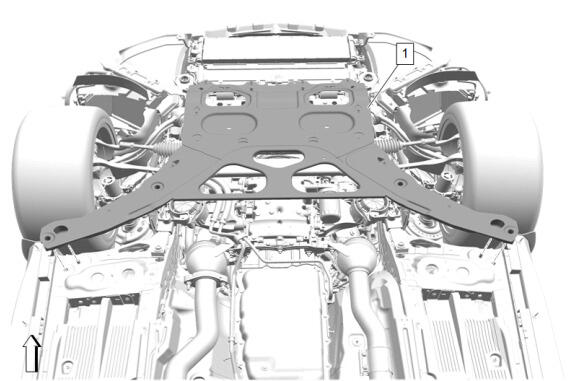

Front Cradle Shear Plate (1) - Remove - Front Cradle Shear Plate Replacement (Blackwing)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Steering Linkage Outer Tie Rod (1) - Remove - Steering Linkage Outer Tie Rod Replacement (with Blackwing)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Steering Linkage Inner Tie Rod Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Steering Gear Boot Outer Clamp (1) - Remove
Steering Gear Boot Inner Clamp (3) - Remove and DISCARD
Steering Gear Boot (2) - Remove
