Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

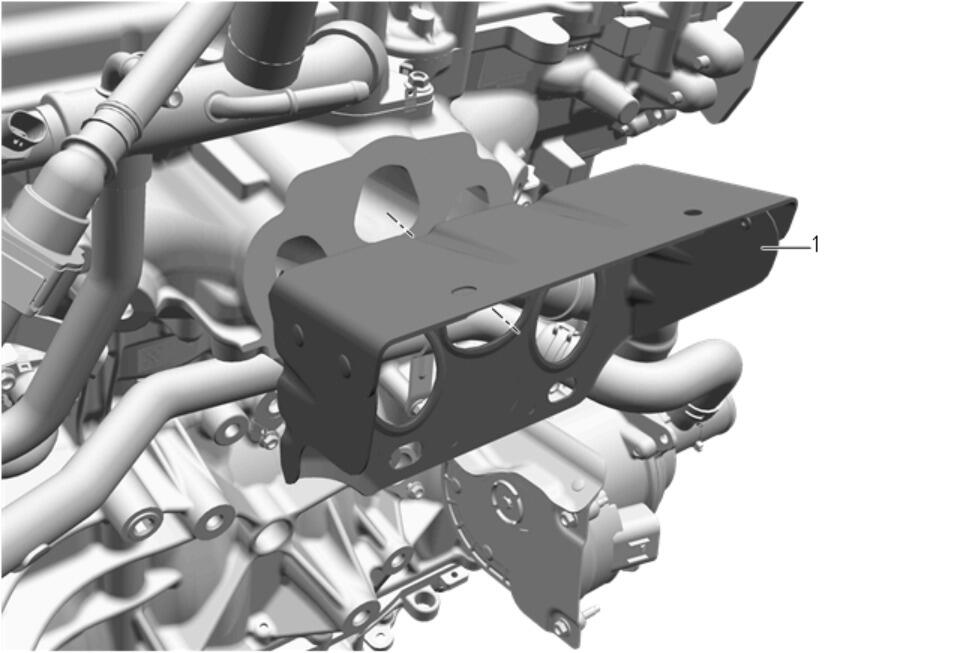

  1. GM5135563Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield (1) - Install NEW

  2. Compressor Air Intake Turbocharger - Install - Compressor Air Intake Turbocharger Replacement
