Positive Crankcase Ventilation Hose Installation

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

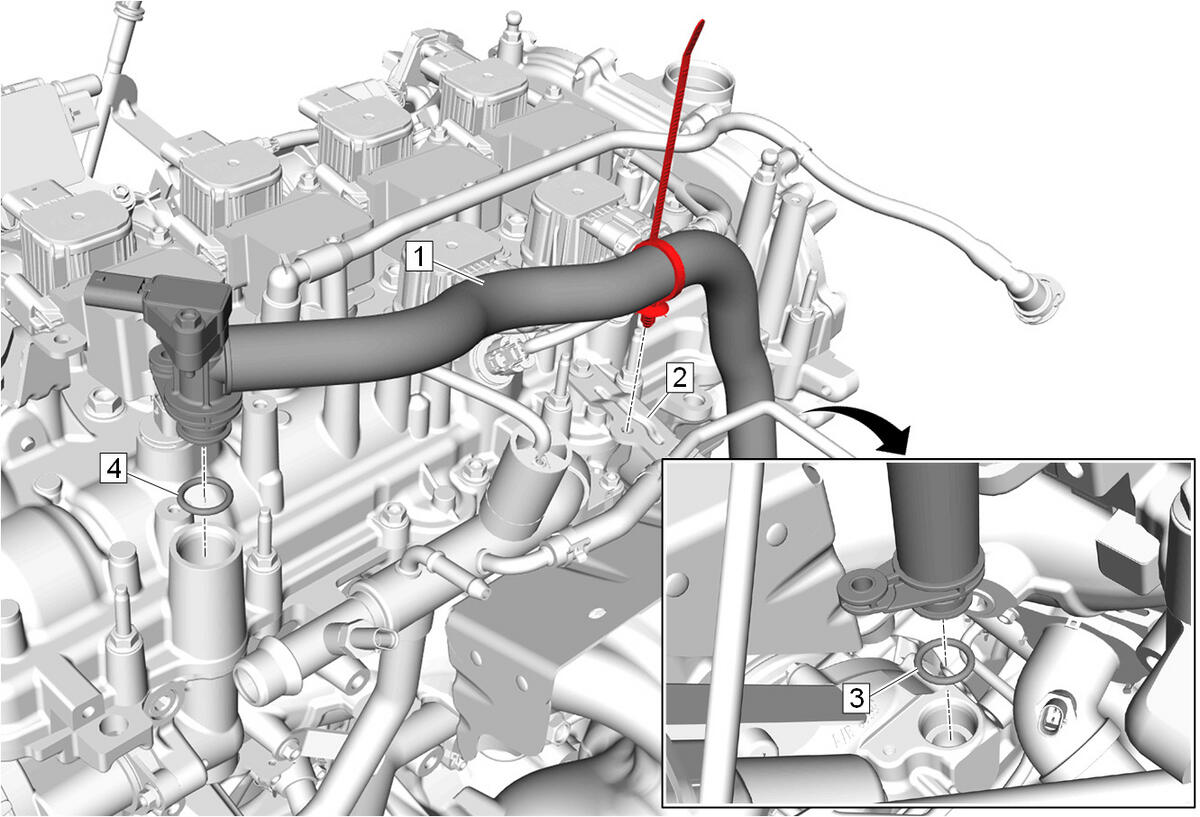

Positive Crankcase Ventilation Hose Fitting Seal (3, 4) - Install NEW [2x]
Positive Crankcase Ventilation Hose (1) - Install
Positive Crankcase Ventilation Hose (1) @ Bracket (2) - Clip
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

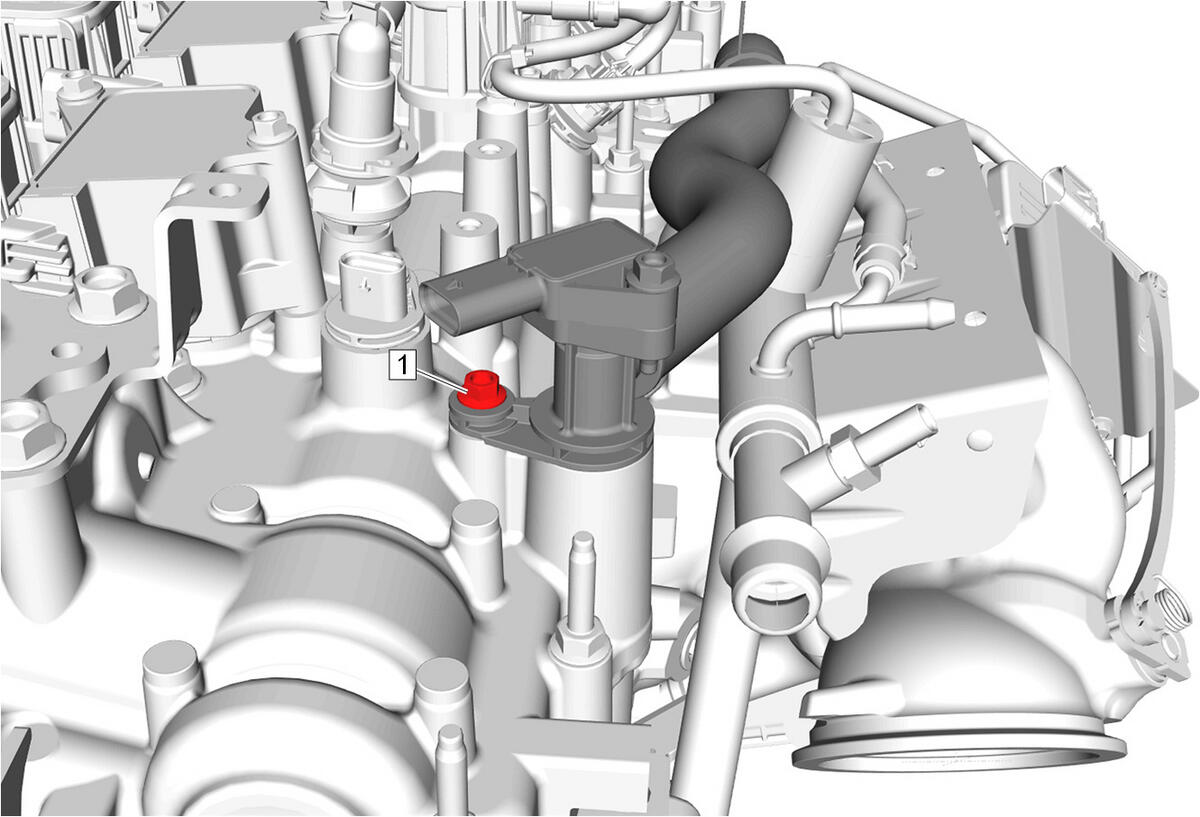

Positive Crankcase Ventilation Hose Connector Bolt (1) - Install and tighten to 8.5 N.m (75 lb in)
Courtesy of GENERAL MOTORS COMPANY

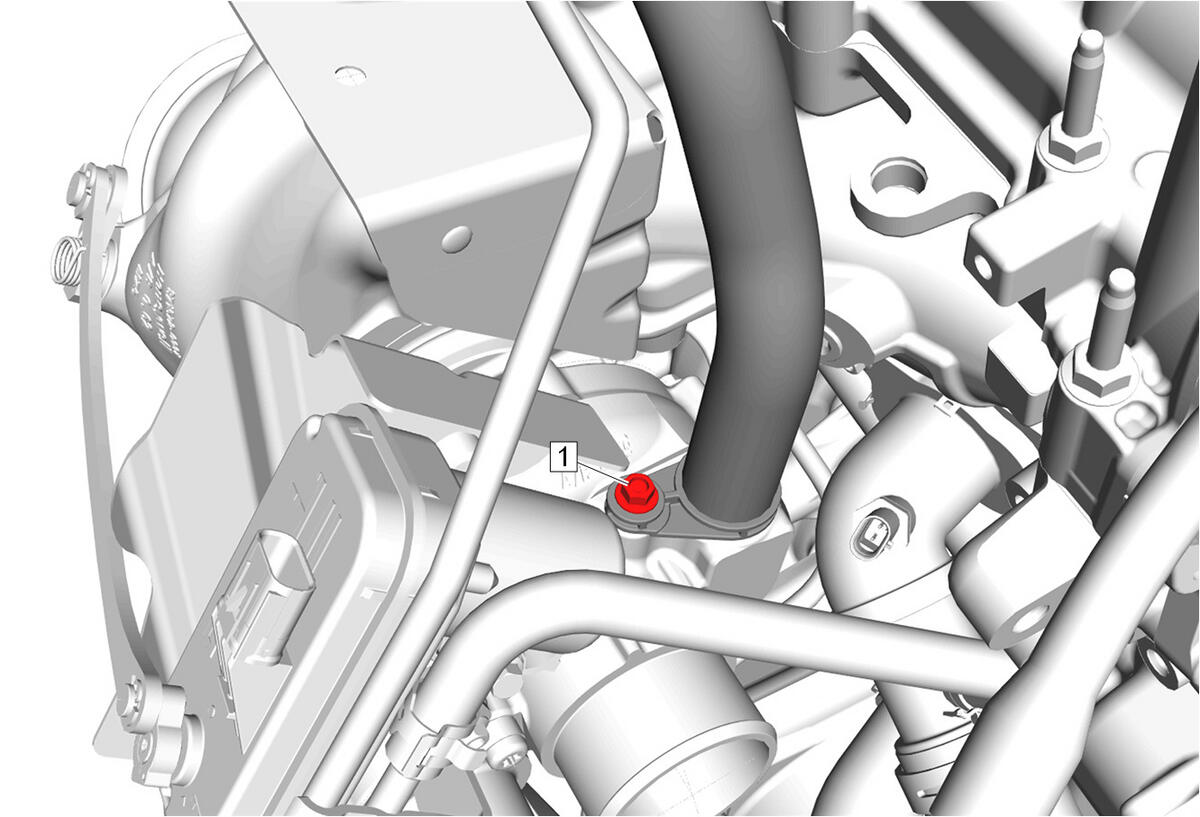

Positive Crankcase Ventilation Hose Connector Bolt (1) - Install and tighten to 8.5 N.m (75 lb in)
