Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Clean all sealing surfaces.
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- The engine block surface must be free of contamination prior to applying the sealer.
- Install and align the engine block lower structural extension to the block within 10 minutes of applying the sealer.
- The oil pan must be fastened to final torque specification within 60 minutes of applying the sealer.
Apply approximately a 4 mm (0.16 in) thick bead of sealant (2, 3) to the engine block lower structural extension. Finally apply a 12 mm dab of sealant at the locations indicated (1). Adhesives, Fluids, Lubricants, and Sealers
Courtesy of GENERAL MOTORS COMPANY

Engine Block Lower Structural Extension (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Take note that there are different bolt lengths.

Engine Block Lower Structural Extension Inner Bolts (1, 2, 3) - Install and hand tighten [3x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Take note that there are different bolt lengths.

Engine Block Lower Structural Extension Outer Bolts (1, 2, 3, 4, 5) - Install and hand tighten [15x]
Fig 1: Identifying Engine Block Lower Structural Extension Bolts With Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Engine Block Lower Structural Extension Bolt - Tighten in sequence [18x] 15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

Oil Filter Bypass Valve (1) - Install and tighten to 55 N.m (41 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Engine Mount Bracket Bolt-Left Side (1) - Install - Engine Mount Bracket Replacement - Left Side
Front Differential Carrier Assembly - Install - Front Differential Carrier Assembly Replacement (LSY)
Front Wheel Drive Intermediate Shaft Housing Seal - Install - Front Wheel Drive Intermediate Shaft Housing Replacement
Courtesy of GENERAL MOTORS COMPANY

Balance Chain (1) - Install - Balancer Chain Replacement
Crankshaft Rear Oil Seal Housing - Install - Crankshaft Rear Oil Seal Housing Replacement
Courtesy of GENERAL MOTORS COMPANY

Automatic Transmission Flex Plate (1) - Install - Automatic Transmission Flex Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Positive Crankcase Ventilation Oil Separator Drain Pipe (1) - Install - Positive Crankcase Ventilation Oil Separator Drain Pipe Replacement
Courtesy of GENERAL MOTORS COMPANY

Oil Pump Screen (2) - Install - Oil Pump Screen Replacement
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

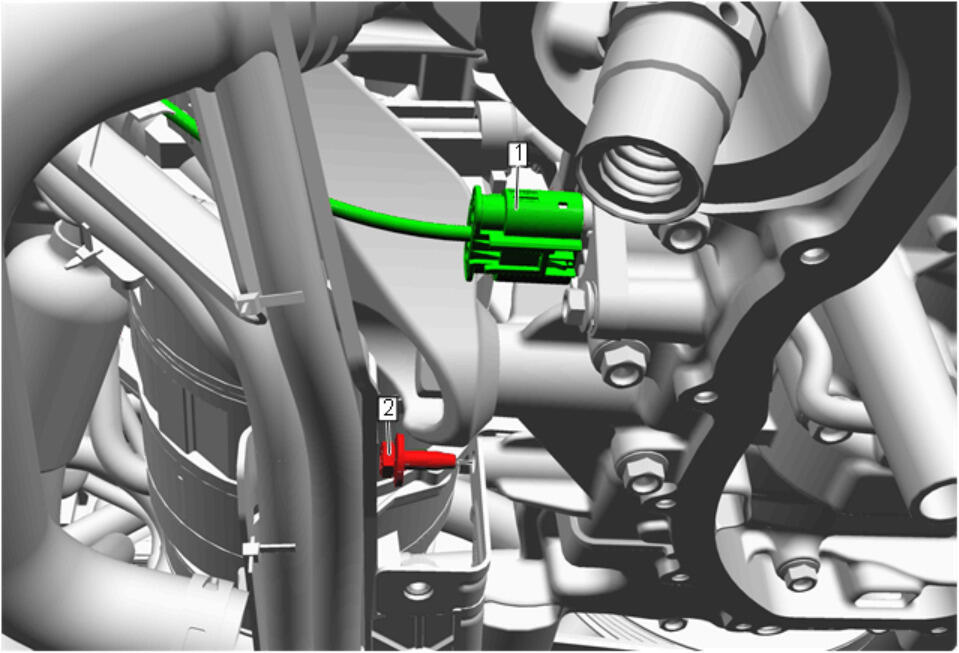

Engine Wiring Harness Bracket Bolt (2) - Install and tighten to 9 N.m (80 lb in)
Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

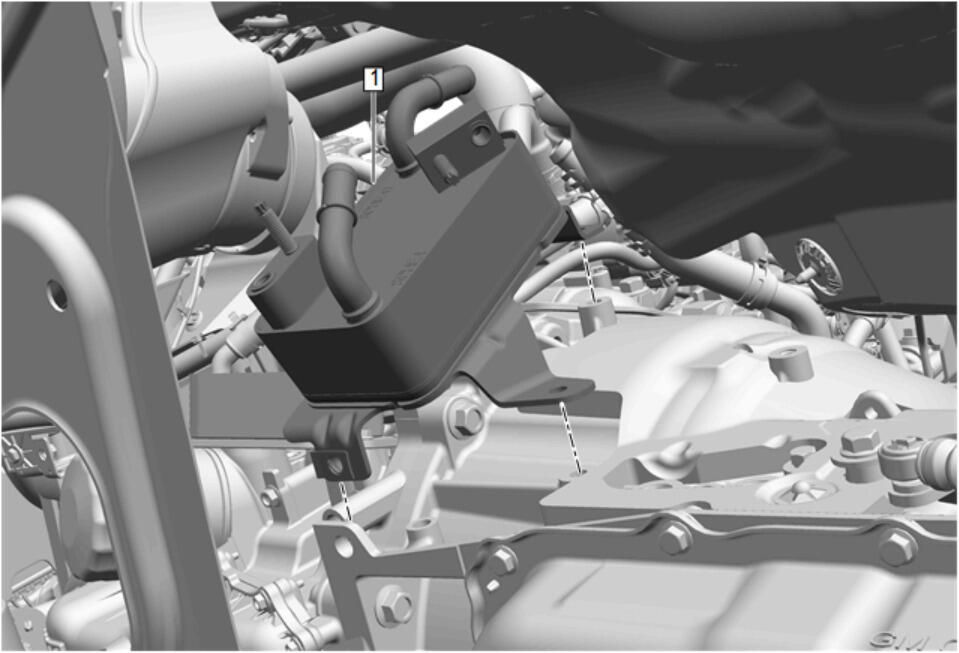

Engine Oil Cooler (2) - Install - Engine Oil Cooler Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

Automatic Transmission Fluid Cooling Exchanger (1) - Install - Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, without V03) , or Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, with V03)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor (3) - Install - Air Conditioning Compressor Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

Oil Level Indicator Tube (1) - Install - Oil Level Indicator Tube Replacement
