Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

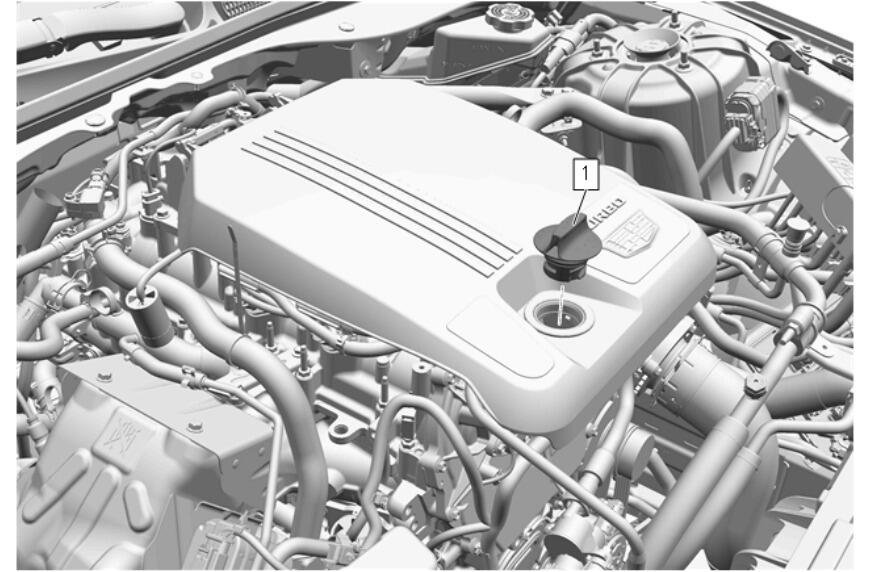

Oil Filler Cap (1) - Remove
 Courtesy of GENERAL MOTORS COMPANY
|

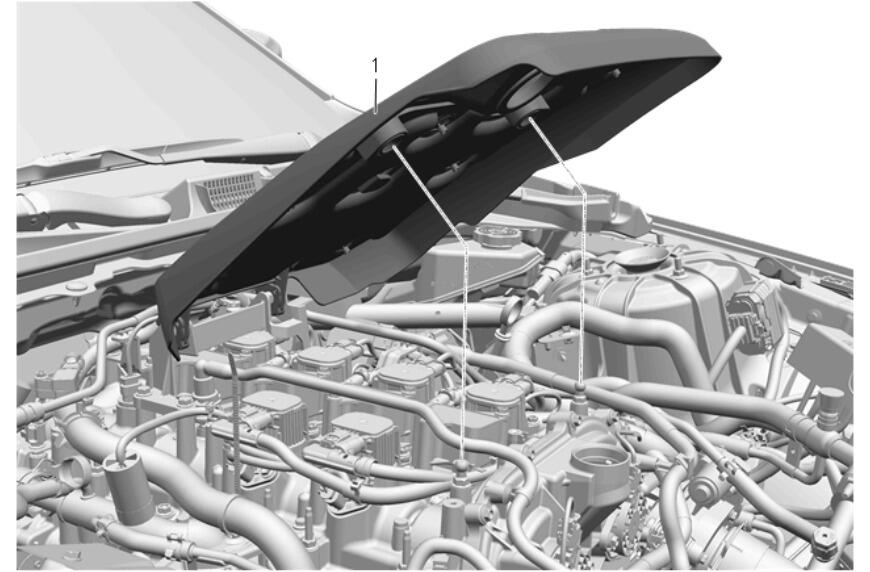

Lift up on the front of the intake manifold cover (1).
 Courtesy of GENERAL MOTORS COMPANY
|

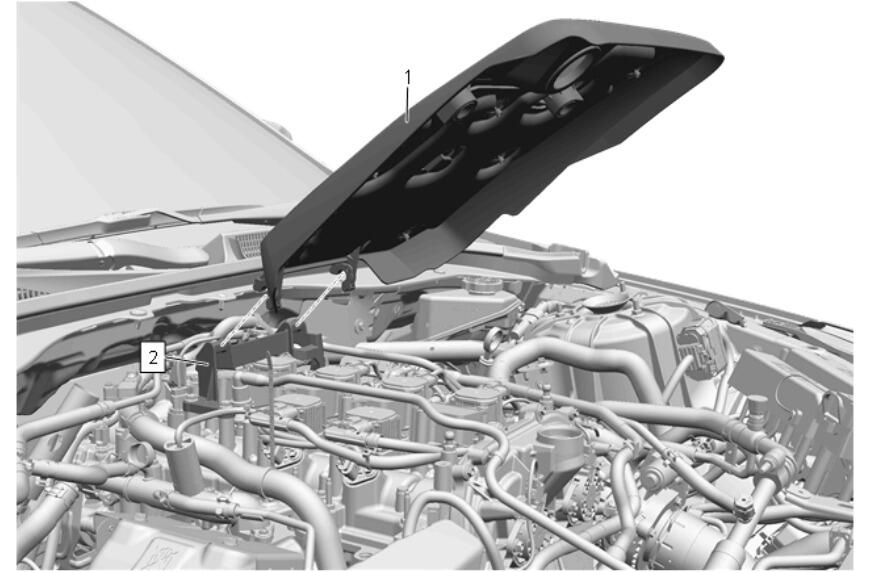

Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove
