Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drivetrain and Front Suspension Cradle - Remove - Drivetrain and Front Suspension Cradle Removal and Installation (RWD LSY) , or Drivetrain and Front Suspension Cradle Removal and Installation (AWD LSY)
  2. Catalytic Converter Brace - Remove - Catalytic Converter Brace Replacement (LSY)

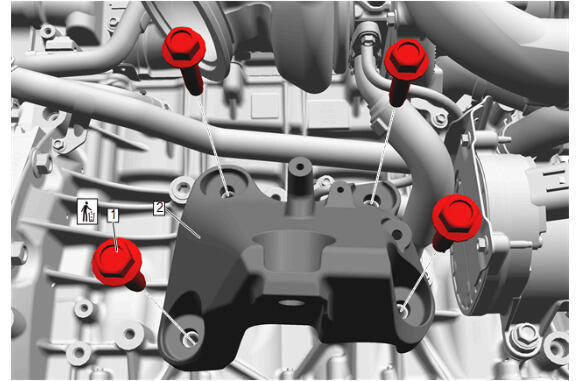

  3. GM5336935Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Bracket Bolt (1) - Remove and DISCARD [4x]

  4. Engine Mount Bracket (2) - Remove
