Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Accessory Drive Primary Belt (1) - Remove - Accessory Drive Primary Belt Replacement
- Front Compartment Air Deflector - Remove - Front Compartment Air Deflector Replacement (AWD) , or Front Compartment Air Deflector Replacement (RWD)
Assemble the EN-52287 Balancer Holder Kit (1) as shown.
Install the EN-52287 Balancer Holder Kit (1) into the crankshaft balancer (3).

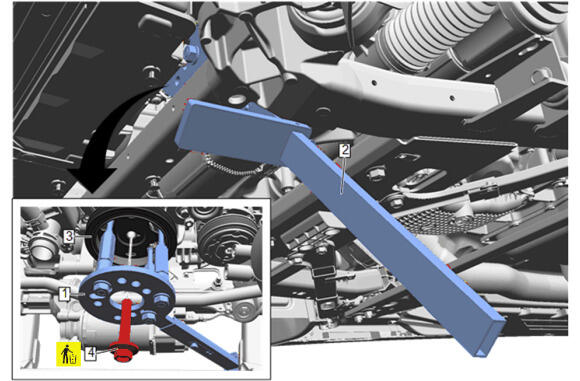

EN-956-1 Extension Handle (1) @ EN-52287 Balancer Holder Kit (2) - Install
- Position the EN-956-1 Extension Handle (2) against the underside of the drivetrain and front suspension cradle as shown.
- Crankshaft Balancer Bolt (4) - Remove and DISCARD
- Remove the EN-52287 Balancer Holder Kit (1) with EN-956-1 Extension Handle (2).

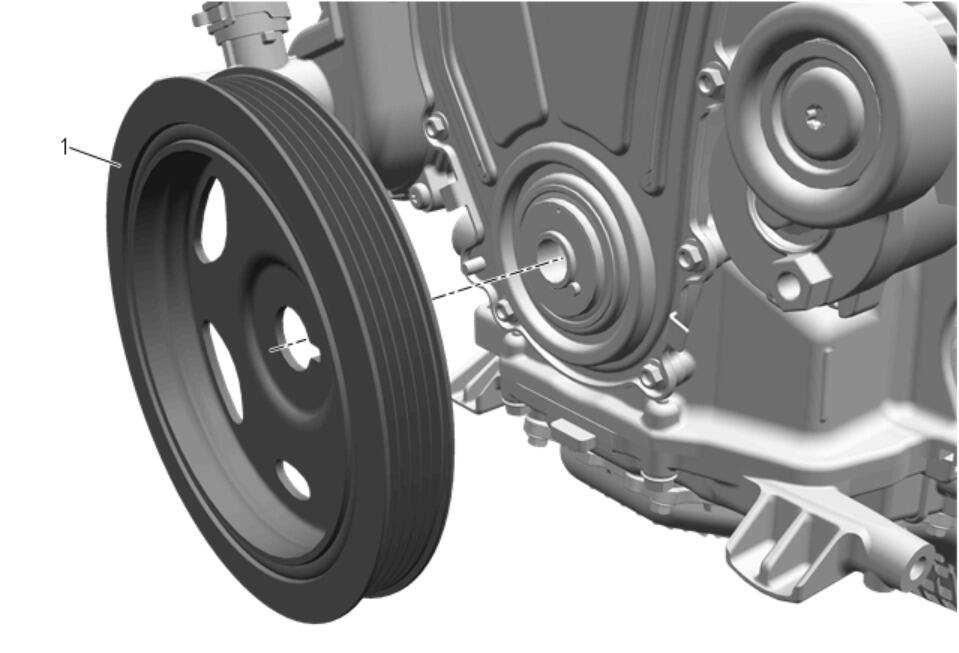

Crankshaft Balancer (1) - Remove
