Rear Parking Assist Alarm Sensor Bracket Replacement: Notes

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

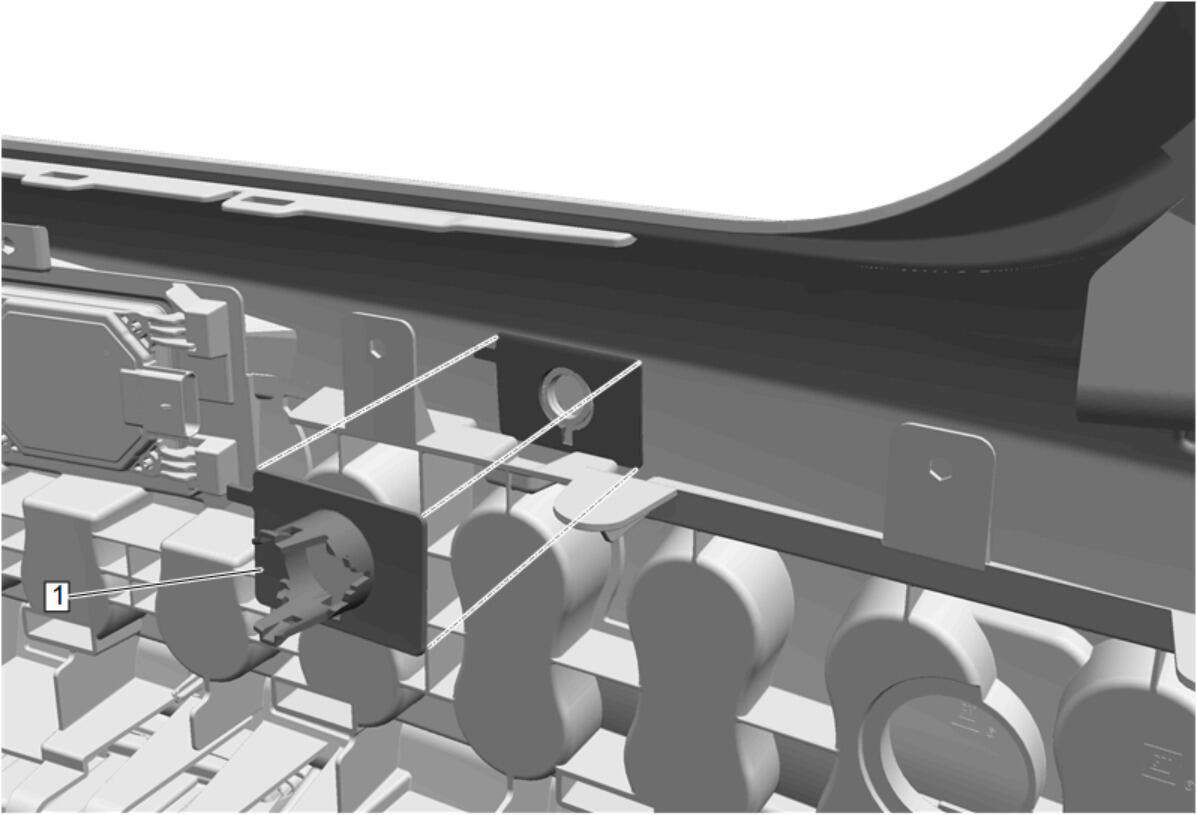

Rear Parking Assist Alarm Sensor (1) - Remove - Parking Assist Alarm Sensor Replacement - Rear
Courtesy of GENERAL MOTORS COMPANY

Using a flat bladed tool carefully remove the bracket (1) from the fascia.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do Not sand off alignment tabs / outline.

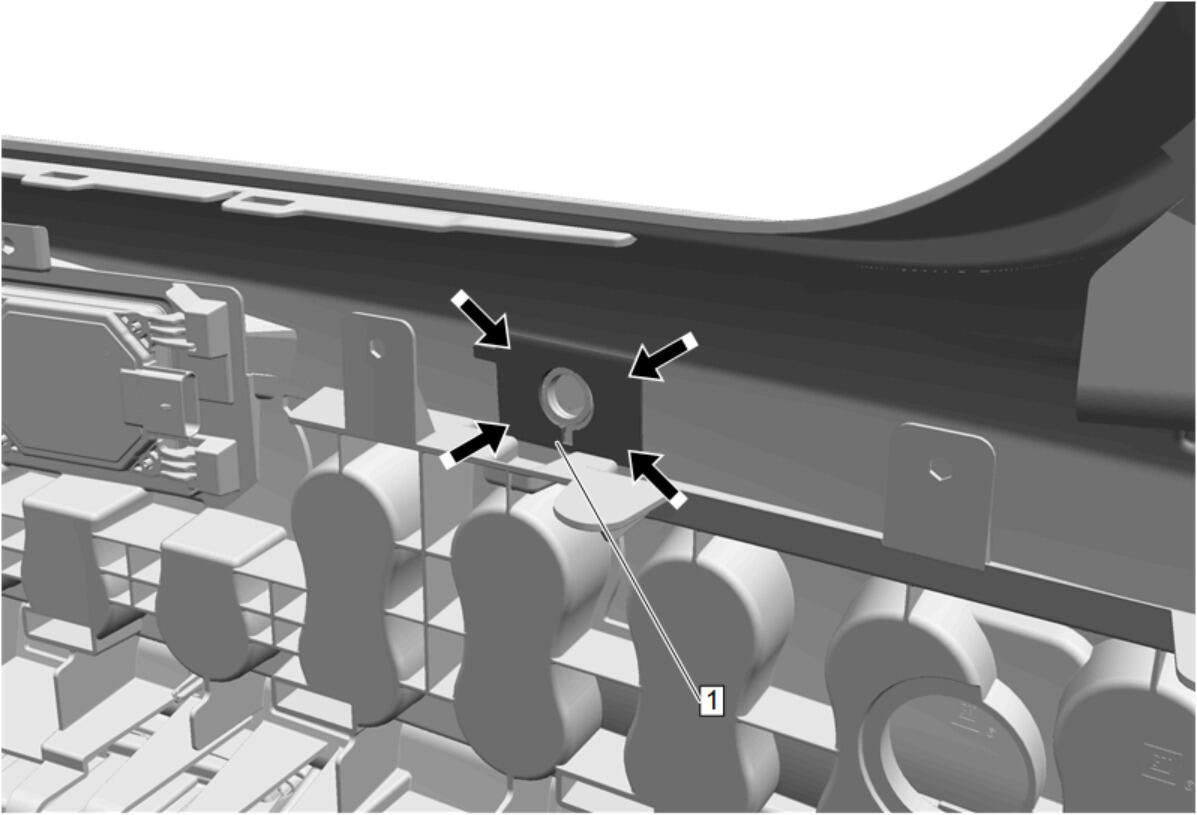

Sand sonic weld plastic residue (1) from the fascia.
