Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the silicone decoupling ring is installed on the sensor to avoid sensor failure.

Insert the sensor (1) into the housing.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

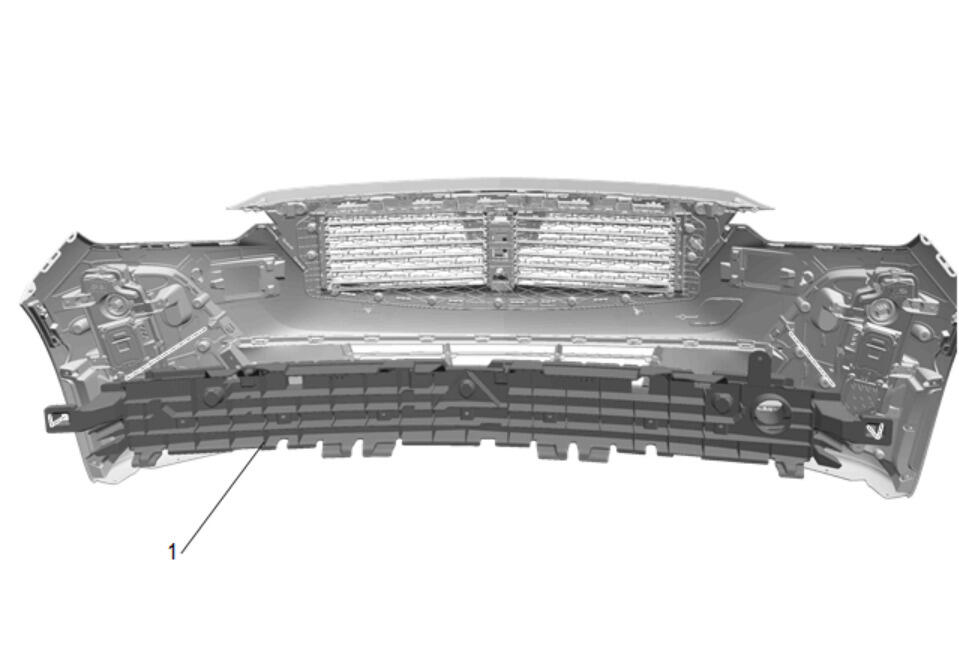

Install the front bumper fascia energy absorber (1). Front Bumper Fascia Energy Absorber Replacement
