Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Clean the repair area with Fusor 703 cleaner or equivalent.

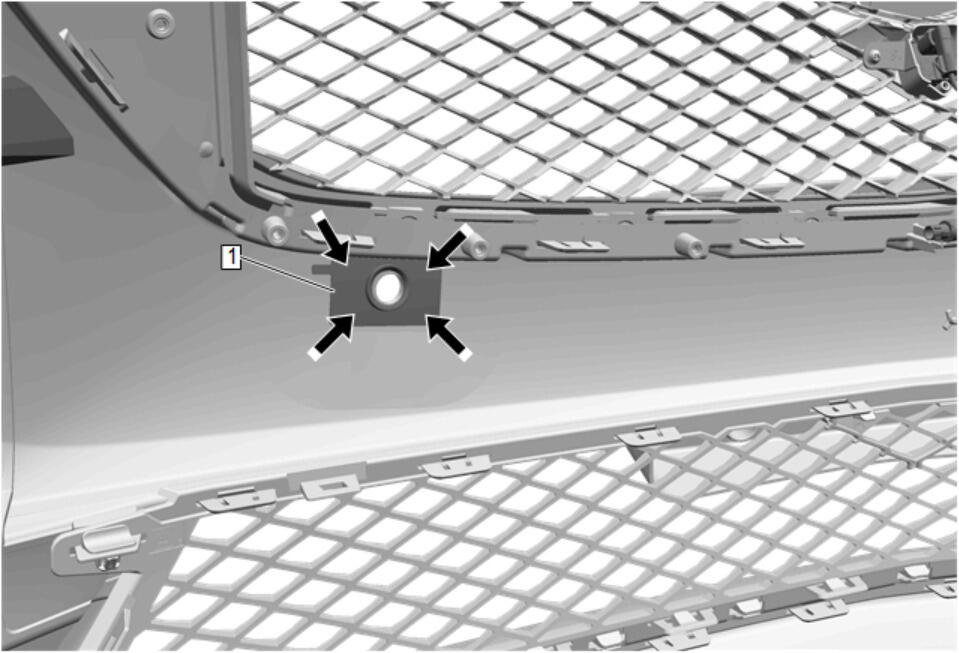

- Apply structural adhesive, Lord Fusor™ 127EZ or equivalent, to fascia at mating surface (1) according to manufacturer's directions.
- Use care to avoid excess material squeeze out around sensor housing.

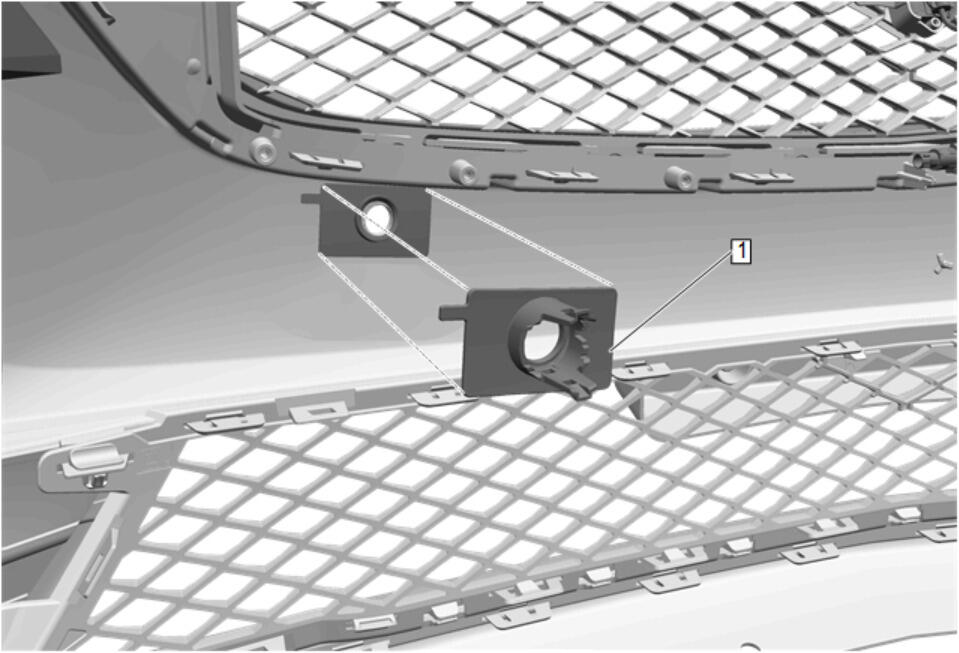

Using the alignment tabs / outline, install the sensor bracket (1) to the fascia.
- Lightly clamp, tape or apply a weight to the sensor housing to hold it in place until adhesive cures
- Allow adhesive to cure according to manufacturer's directions.

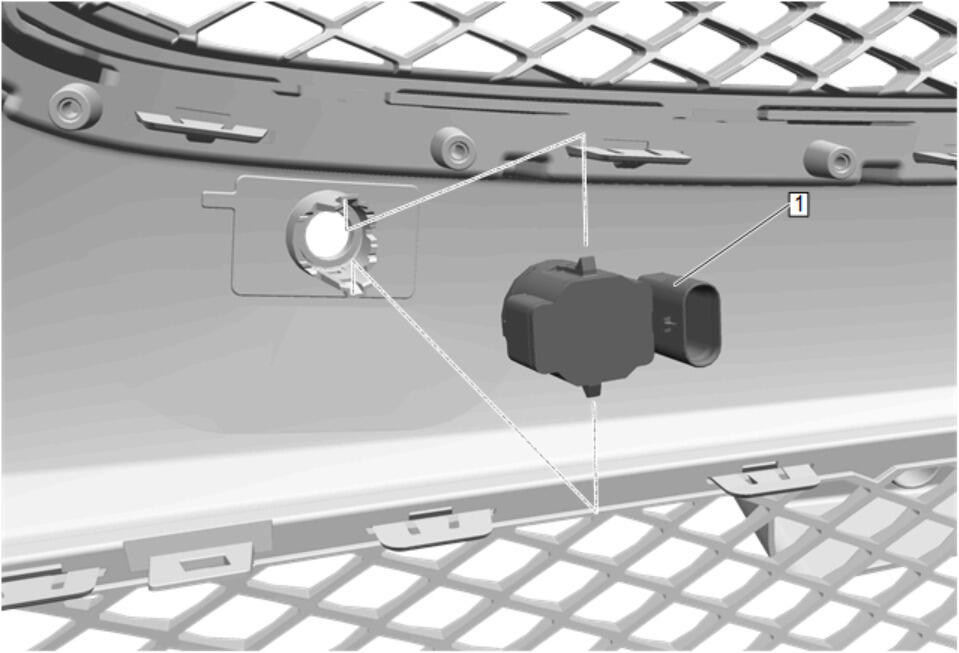

Front Parking Assist Alarm Sensor (1) - Install - Parking Assist Alarm Sensor Replacement - Front
