Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Remove - Front Bumper Fascia Replacement (with Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Cradle Shear Plate (1) - Remove - Front Cradle Shear Plate Replacement (Blackwing)
Place a drain pan under the vehicle.
Courtesy of GENERAL MOTORS COMPANY

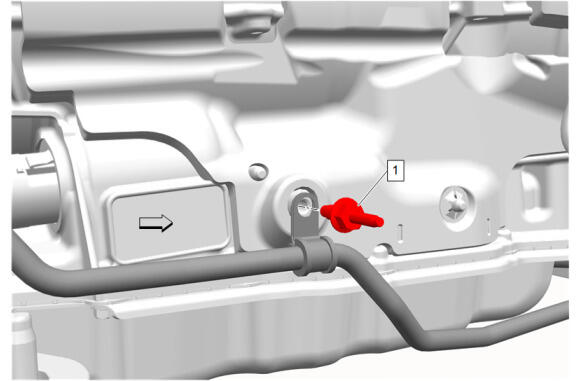

Transmission Fluid Cooler Pipe Bracket Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Pipe Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Pipe Bracket Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

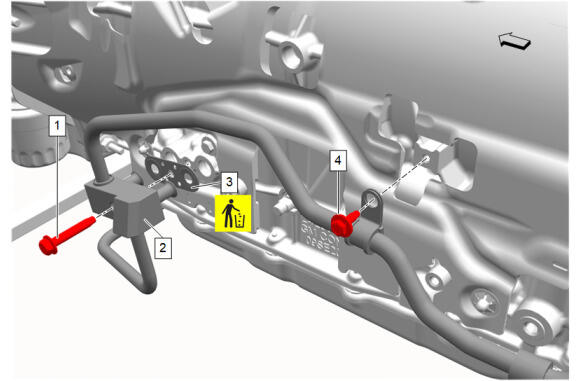

Transmission Fluid Cooler Pipe Bolt (1) - Remove
Transmission Fluid Cooler Inlet and Outlet Pipe (2) - Disconnect
Transmission Fluid Cooler Seal (3) - Remove and DISCARD
Transmission Fluid Cooler Pipe Bracket Bolt (4) - Remove
Courtesy of GENERAL MOTORS COMPANY

Retaining Clip (3) - Disengage [2x]
Transmission Fluid Cooler Inlet and Outlet Pipe (2) - Disconnect [2x]
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Pipe Bracket Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Pipe Nut (3) - Remove
Transmission Fluid Cooler Inlet and Outlet Pipe (1) - Disconnect
Transmission Fluid Cooler Seal (2) - Remove and DISCARD
Transmission Fluid Cooler Inlet and Outlet Pipe (1) - Remove
